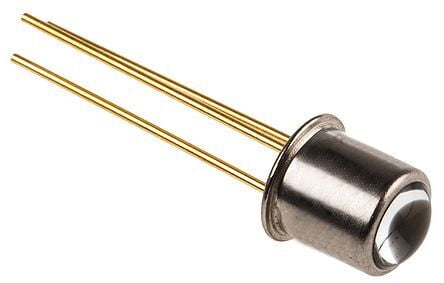

IR Phototransistor (BPX 43-4)
BD 3.500
Phototransistor, TO-18 Metal Can, Half angle ±15 °, Lead (Pb) Free Product - RoHS Compliant
Key Features
Spectral range of sensitivity: (typ) 450 to 1100 nm Package: Metal Can (TO-18), hermetically sealed Special: Base connection Suitable up to 125°C High linearity Available in groups Photocurrent is ≥ 3200[µA]
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Half Intensity Angle Degrees | 30 | |
| Lead Finish | Matte Tin | |
| Lens Dimensions | 4.8 mm | |
| Lens Shape Type | Domed | |
| Max Processing Temp | 235 to 260 | |
| Maximum Collector Current | 50 mA | |
| Maximum Dark Current | 300 nA | |
| Maximum Fall Time | 18000 ns | |
| Maximum Rise Time | 18000 ns | |
| Mounting | Through Hole | |
| Operating Temperature | -40 to 125 °C | |
| Peak Wavelength | 880 nm | |
| Pin Count | 3 | |
| Polarity | NPN | |
| Product Dimensions | 5.6 x 5.6 x 6.2 mm | |
| Supplier Package | TO-18 | |
| Type | Chip | |
| Viewing Orientation | Top View |
