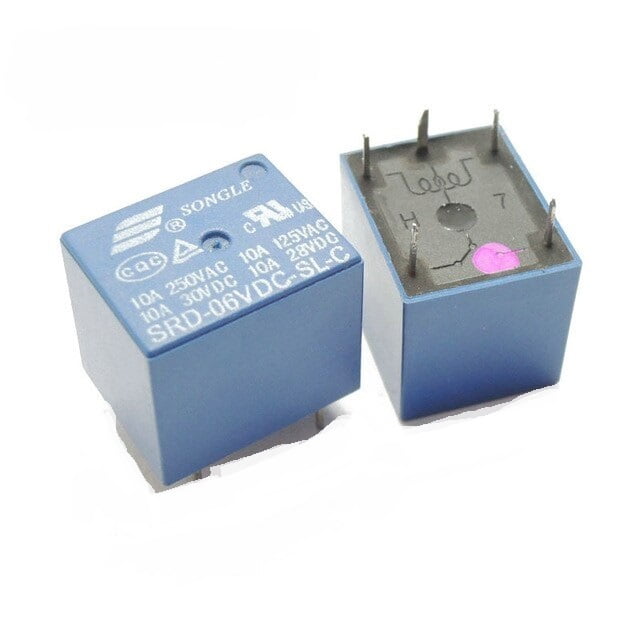

Relay 6VDC
BD 2.000
Coil Data
- Coil Power: 360mW
- Nominal Voltage: 6Vdc
- Pick-Up Voltage: 4.5Vdc
- Drop-Out Voltage: 0.6Vdc
- Maximum Voltage: 7.8Vdc
- Coil Resistance: 100ohm
Contact Data
- Contact Rating: 1A @ 240Vac / 30Vdc
- Maximum Switching Voltage: 240Vac / 30Vdc
- Maximum Switching Current: 5 A
- Maximum Switching Power: 600VA / 30W
- Mechanical Endurance: 10,000,000 Operations
- Electrical Endurance: 100,000 Operations (NO Contact)
- Maximum Turn-On Time: 10 ms
- Maximum Turn-Off Time: 5 ms
General
- Dielectric Strength (Between Contacts): 500 VAC 1 min
- Insulation Resistance: 1000 Mohm@500 VDC
- Ambient Operating Temperature Range: -40°C to +85°C
- Weight: 5g
- Termination: PCB Pin Mounting
- RoHS Compliant: Yes
Choose Quantity
Product Details
MAIN FEATURES:
• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.
• UL,CUL,TUV recognized.
• Selection of plastic material for high temperature and better chemical solution performance.
• Sealed types available.
• Simple relay magnetic circuit to meet low cost of mass production.
APPLICATIONS:
• Domestic appliance, office machine, audio, equipment, automobile, etc. ( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)
