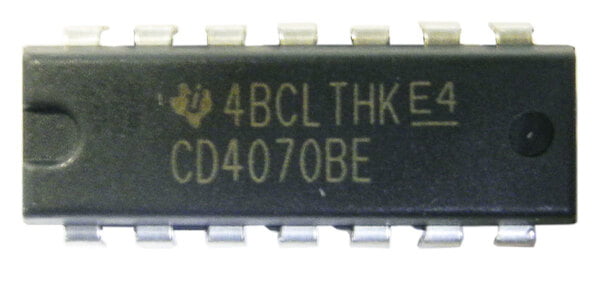

IC CD4070 (QUAD 2-INPUT EXCLUSIVE OR GATE)
BD 1.400
The Harris CD4070B contains four independent ExclusiveOR gates. The Harris CD4077B contains four independent Exclusive-NOR gates
The CD4070B and CD4077B provide the system designer with a means for direct implementation of the Exclusive-OR and Exclusive-NOR functions, respectively
Applications
• Logical Comparators
• Adders/Subtractors
• Parity Generators and Checkers
Specifications:-
- LOGIC Circuit: XOR
- Voltage Rating: 3V to 15V
- Propagation Delay (tpd): 280ns
- Noise immunity: 0.45 VDD
- Inputs: 2
Choose Quantity
Product Details
Features
• High-Voltage Types (20V Rating)
• CD4070B - Quad Exclusive-OR Gate
• CD4077B - Quad Exclusive-NOR Gate
• Medium Speed Operation - tPHL, tPLH = 65ns (Typ) at VDD = 10V, CL = 50pF
• 100% Tested for Quiescent Current at 20V
• Standardized Symmetrical Output Characteristics
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1µA at 18V Over Full Package Temperature Range - 100nA at 18V and 25oC
• Noise Margin (Over Full Package Temperature Range) - 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Standard No. 13B, “Standard Specifications for Description of ‘B’ Series CMOS Devices
