Grove Air Quality Sensor
BD 17.500

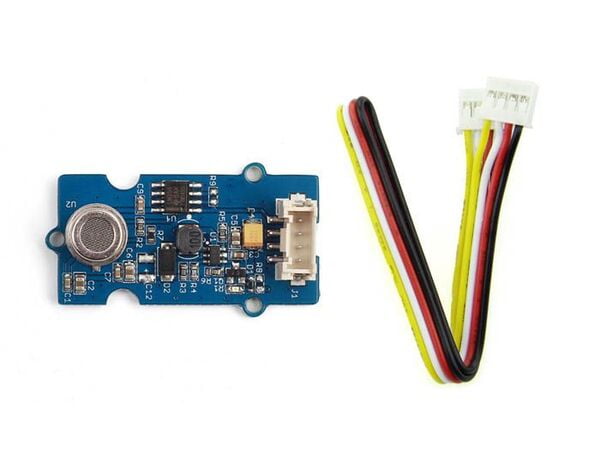

This sensor is designed for comprehensive monitor over indoor air condition. It's responsive to a wide scope of harmful gases, as carbon monoxide, alcohol, acetone, thinner, formaldehyde and so on. Due to the measuring mechanism, this sensor can not output specific data to describe target gases' concentrations quantitatively. But it's still competent enough to be used in applications that require only qualitative results, like auto refresher sprayers and auto air cycling systems.
Choose Quantity
Product Details
Features
- Responsive to a wide scope of target gases
- Cost efficient
- Durable
Cautions
- Require relatively clean air as an initial condition.
- Long time exposure to highly polluted air can significantly weaken its sensitivity.
Getting Started
With Arduino
As described in Introduction, this sensor does better in providing qualitative results over a wide scope of target gases. In this demo, we define 4 statuses for reference in the .cpp file. They are:
- a. air fresh -- indicating a good air condition
- b. low pollution -- indicating a rather low concentration of target gases exist.
- c. high pollution(without "Force signal active" message printed on serial monitor) -- you should be aware of the pollution level and think if some measures should be taken.
- d. high pollution(with "Force signal active" message printed on serial monitor) -- instant measures should be taken to improve the air quality.
