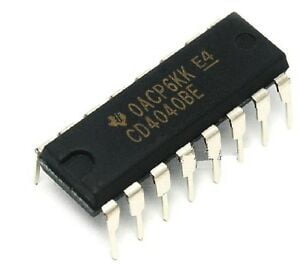

IC CD4040 (12-Stage Ripple Carry Binary Counter)

CD4040 is ripple-carry binary counters. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.

The CD4040 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). The CD4040 type also is supplied in 16-lead small-outline packages (M and M96 suffixes).

The CD4024 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Features:-

• Medium-speed operation
• Fully static operation
• Buffered inputs and outputs
• 100% tested for quiescent current at 20 V
• Standardized, symmetrical output characteristics
• Fully static operation
• Common reset
• 5-V, 10-V, and 15-V parametric ratings
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Noise margin (over full package-temperature range):
      1 V at VDD = 5 V
      2 V at VDD = 10 V
      2.5 V at VDD = 15 V
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
