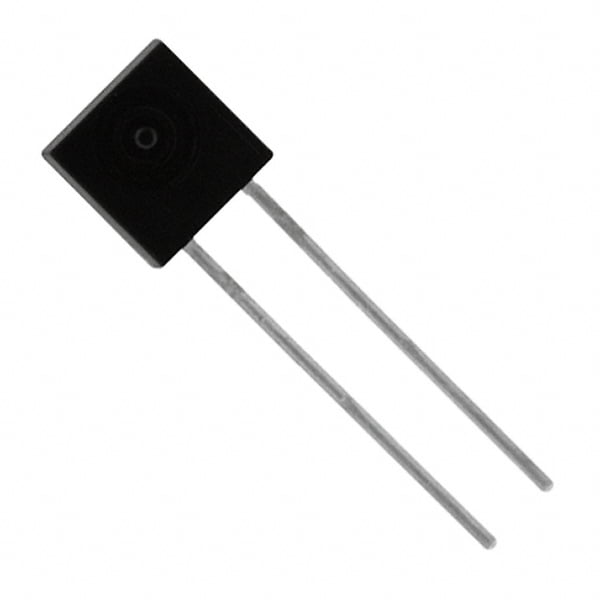

Phototransistor 920nm (TEKT5400S)
BD 2.400
TEKT5400 Series PIN Photodiodes
The TEKT5400 series, from Vishay Semiconductor, are silicon NPN phototransistors. They are in side looking, through-hole packages. They have a black plastic package which provides a daylight filter, blocking out ambient visible light. The TEKT5400 phototransistors are ideal for use as detectors in electronic control and drive circuits.
Features and Benefits:
• Package type: leaded
• Package form: side view lens
• Dimensions (L x W x H in mm): 5 x 2.65 x 5
• High radiant sensitivity
• Daylight blocking filter matched with 940 nm
emitters
• Fast response times
• Angle of half sensitivity: ϕ = ± 37°
• Package matched with IR emitter series TSKS5400S
Applications:
• Detector in electronic control and drive circuits
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Spectrums Detected | Visible Light |
| Typical Fall Time | 5µs |
| Typical Rise Time | 6µs |
| Number of Channels | 1 |
| Maximum Light Current | 4000µA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | ±37 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Side Looker |
| Dimensions | 5 x 2.65 x 5mm |
| Collector Current | 100mA |
| Maximum Wavelength Detected | 980nm |
| Spectral Range of Sensitivity | 850 → 980 nm |
| Width | 2.65mm |
| Height | 5mm |
| Length | 5mm |
| Minimum Wavelength Detected | 850nm |
