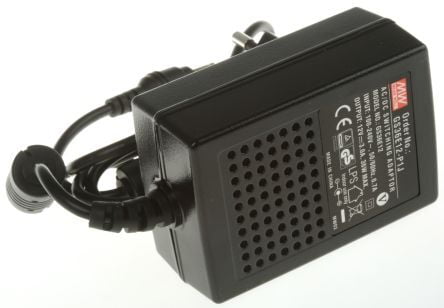

Adapter 12v, 3A, 36W
IG Electronics offers power adapters with low no load power consumption ˂0.3W, this plug in power supply also complies with energy saving regulations, such as ErP step 2 and EISA 2007. The Mean Well 2 pin Euro plug power supply is a class II power unit and comes in a fully enclosed plastic case. The GSxxE has TUV, CB and CE certificates, which guarantee the safety for different applications requiring low no load power consumption.
Energy saving power supplies with 2 pin Euro plug
ErP level V
No load power consumption< 0.3W
Meets EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Overload, overvoltage and short circuit protection
Approximately 1m output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B
Harmonic compliance to EN 61000-3-2,3
| Technical data | Information | ||
|---|---|---|---|
Brand | Mean Well | Commodity | 8504409090 |
Item number | GS36E12-P1J | Warranty pack | 24 Months Bring-In |
Series | GS36E | RoHS | Compliant |
Description | AC-DC Wall mount adaptor; Output 12Vdc at 3A; Input European plug | Packing quantity | 60 |
Application | ITE EN/UL/IEC 60950 | Net weight (gram) | 240 |
Technology | AC/DC | Alternative item number | GST36E12-P1J |
Power Format | Wall Mount | Life cycle status | Discontinued |
Output Power (W) | 36 | ||
Output Voltage (V) | 12 | ||
Output Current (A) | 3 | ||
Input Voltage (V) | 90 - 264 Universal Input 110/230V | ||
IP Rating | No IP assigned | ||
Width (mm) | 54 | ||
Height (mm) | 33 | ||
Depth (mm) | 79 | ||
Dimming Technology | No Dimming |
