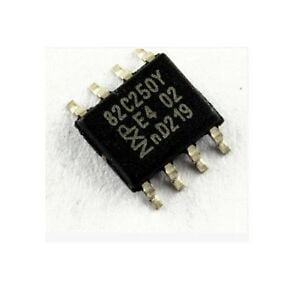

PCA82C250T (smd)
BD 4.500
The PCA82C250 is the interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Features and benefits
Fully compatible with the “ISO 11898” standard
High speed (up to 1 MBd)
Bus lines protected against transients in an automotive environment
Slope control to reduce Radio Frequency Interference (RFI)
Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI)
Thermally protected
Short-circuit proof to battery and ground
Low-current Standby mode
An unpowered node does not disturb the bus lines
At least 110 nodes can be connected
Applications
High-speed automotive applications (up to 1 MBd)
Choose Quantity
Product Details
Technical data
| Type | PCA82C250T/YM,115 |
|---|---|
| Enclosure | SO 8 |
| Manufacturer | NXP Semiconductors |
| Manuf. Code | NXP |
| Type | Transceiver |
| No. of drivers/receivers | 1/1 |
| Supply voltage (min.) | 4.5 V |
| Supply voltage (max.) | 5.5 V |
| Operating temperature (min.) | -40 °C |
| Max. operating temperature | +125 °C |
| Duplex | Half-duplex |
|---|---|
| Data transfer rate | 1 Mbps |
| Receiver hysteresis | 150 mV |
| Protocol | CAN |
| Mounting type | Surface-mount |
| Product type | Interface IC - transceiver |
