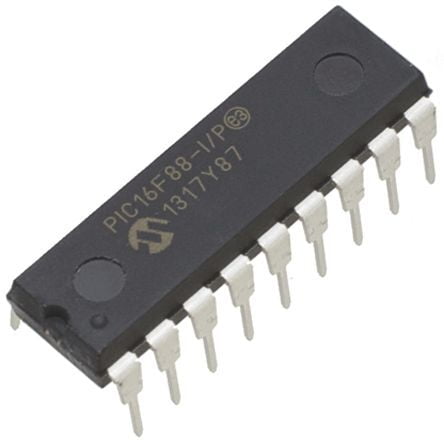

PIC16F88 (4kB Microcontroller)

Name: PIC16F88 (4kB Microcontroller)
SKU: PIC/16F/88
Price: 5.5 BHD
Availability: InStock

BD 5.500

PIC16F88 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F87/88 family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 7 Kbytes program memory, 368 bytes RAM and 256 bytes EEPROM. On board is a configurable oscillator.

Choose Quantity

+ Add to Cart

Product Details

Features

High-Performance RISC CPU

- Only 35 single word instructions to learn
- All instructions are single cycle (1µs) except for program branches
- Operating speed: DC - 20MHz clock input
- 4 kBytes Flash Program Memory
- 368 Byte RAM Data Memory
- 256 Byte EEPROM Data Memory
- In-circuit Serial Programming

Peripheral Features

- Two 8-bit timer/counter with 8-bit programmable prescalar
- One 16 bit timer/counter
- High current source/sink for direct LED drive
- Capture, Compare, PWM Module with 16-bit Resolution
- Synchronous Serial Port with SPI and I²C
- Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART) for RS-232
- Seven Channel 10-bit Analog-to-Digital Converter

Special Microcontroller Features

- Power-On Reset
- Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)
- Brown-out Detect (BOD)
- Watchdog Timer with separate RC oscillator
- 1,000 erase/write cycles Enhanced Flash Program Memory
- 1,000,000 typical erase/write cycles EEPROM Data Memory
- Selectable Oscillator Options

CMOS Technology

- Low power, high speed CMOS FLASH technology
- Fully Static Design
- Low Power Consumption

I/O and Packages

- 16 I/O pins with individual direction control
- 18-pin DIP
