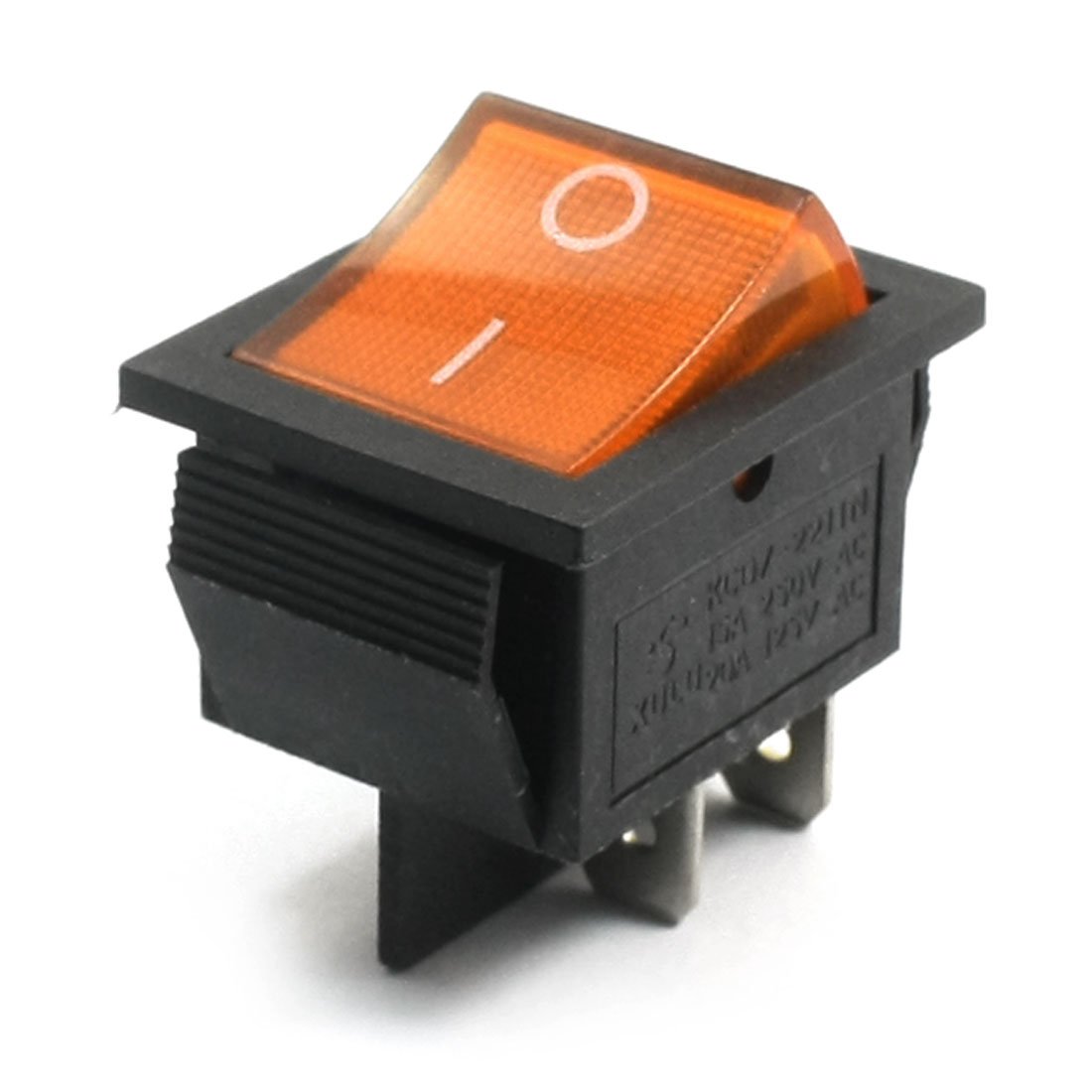

ROCKER SWITCH ORANGE ON/OFF DPST (WITH LAMP) 16A 250VAC PANEL MOUNT

ROCKER SWITCH ORANGE ON/OFF DPST (WITH LAMP) 16A 250VAC PANEL MOUNT

BD 2.500
Double Pole Power Rocker switch

From ZF, the WR series of double pole on-off rocker switches designed for panel mounting. With a choice of red or green illumination or standard non-illuminated black actuators, these rugged rocker switches are ideally suited to high current applications. Once a 30 x 22 mm cut-out is made these latching rockers easily snap-in to the panel and are retained securely with the self-locking ribs. The WR series of rocker switches are ideal for maintenance, repair and new prototype work.

Features and Benefits

• AC mains rated
• Nylon 66 moulded casing to UL 94V-2
• Durable silver alloy contacts for up to 16A switching
• Self-locking compensation ribs for tight fit
• 3 mm contact gap
• Connection via 6.3 x 0.8 mm quick connect tab terminals
• Option for I/O markings on actuator
• DPST switch configuration
• Splash-proof cover available separately
