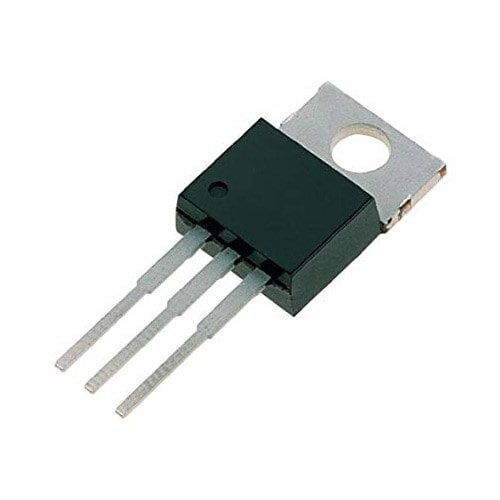

IRF840 500v, 8A N-Ch
Non-returnable
BD 0.900
The IRF840 is an N-Channel Power MOSFET which can switch loads up to 500V. The Mosfet could switch loads that consume up to 8A, it can turn on by providing a gate threshold voltage of 10V across the Gate and Source pin. Since the MOSFET is for switching high current high voitage loads it has á relatively high gate voltage, hence cannot be used directly with an 1/O pin of a CPU. If you prefer a mosfet with low gate voltage then try IRF540N or.2N7002 etc.
One considerable disadvantage of the IRF840 Mosfet is its hgh on-resistance (RDS) va ue which 's acout 0.85 ohms. Hence this mosfet cannot be used in applications where high switching efficiency is required. The Mosfet requires a driver circuit to provice 10V to the gate pin of this-Mosfet the simplest driver circuit can be bulld using a transistor. it is relatively cheapand has very low themal resistance, addled to this the mosfet also has good switching speeds and hence can be used in DC-DC converter circu its.
Choose Quantity
Product Details
Features:
· N-Channel Power MOSFET
· Continuous Drain Current (ID): 8A
· Gate threshold voltage (VGS-th) is 10V (limit = #20V)
· Drain to Source Breakdown Voltage: 500V
· Rise time and the fall time is 23nS and 20ns
· Avalable in To-220 package
· Drain-Source Resistance (RDS) is 0.85 Ohms
Applications:
· Switching high power devices
· Inverter Circuits
· DC-DC Converters
· Control speed of motors
· LED dimmers or flashers
High-Speed switching applications
