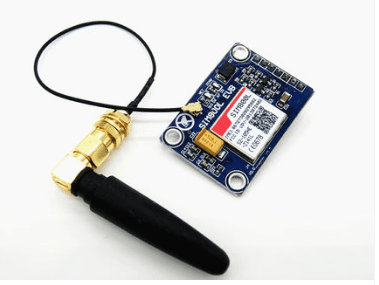

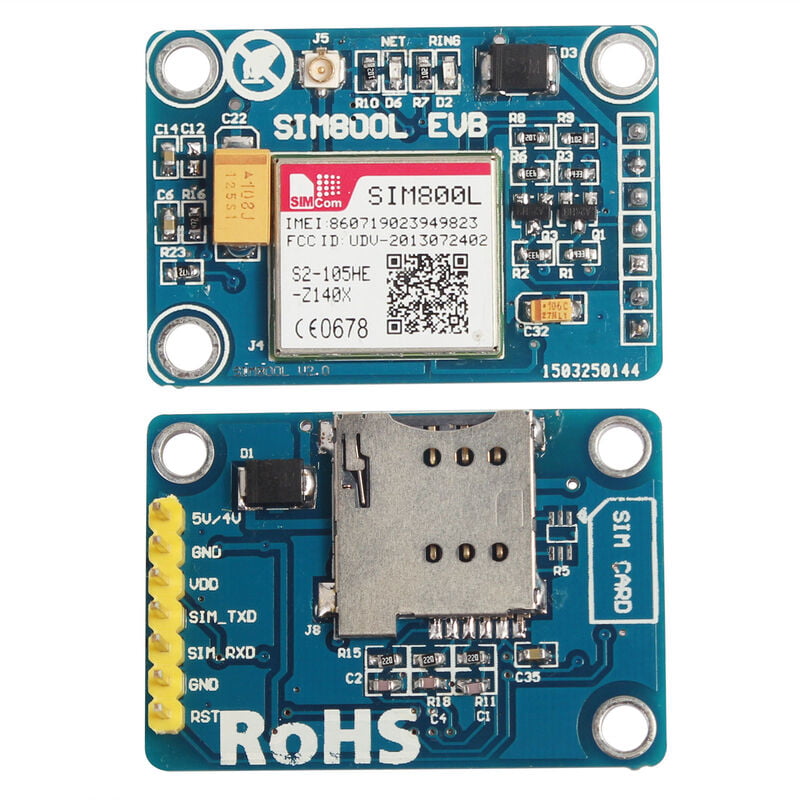

GPRS GSM SIM800L Module for Arduino
Non-returnable
BD 18.500
Out of stock
SIM800 is one of the most commonly used GSM module among hobbyists and Arduino community. SIM800L is a quad-band GSM/GPRS module, that works on frequencies GSM850MHz, EGSM900MHz, DCS1800MHz and PCS1900MHz. SIM800L features GPRS muti-slot calss 12/calss 10(optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. SIM800L can meet almost all the space requirements in user applications, such as smart phone, PDA and other mobile devices.
Features:
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
- Class 4 (2 W @ 850/900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
•FM: 76~109MHz worldwide bands with 50KHz tuning step
•Dimensions: 17.6*15.7*2.3 mm
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40°C~85°C
Specifications for GPRS Data:
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
Specifications for SMS via GSM/GPRS:
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
- Class 4 (2 W @ 850/900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
•FM: 76~109MHz worldwide bands with 50KHz tuning step
•Dimensions: 17.6*15.7*2.3 mm
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40°C~85°C
Specifications for GPRS Data:
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
Specifications for SMS via GSM/GPRS:
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Product Details
Software features:
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
Specifications for voice:
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
•AMR
- Half rate (HR)
- Full rate (FR)
•Hands-free operation
(Echo suppression)
