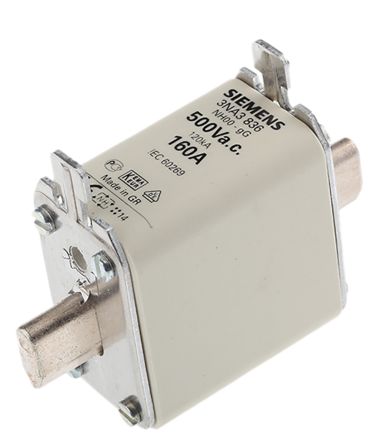

Fuse 3NA3836, 160A, 500VAC,Size: NH00 (SIEMENS)
13.000BD
Out of stock
NH Fuse Links, 3NA3 Series, Size 00, Type gG
NH fuse links with front indicator
The front-face red indicator signals when the fuse cuts out
Operating class gG (for cable and line protection)
For selective line protection and system protection in functional building, industry and power supply companies
Standards
IEC 60269-1, IEC 60269-2, EN 60269-1
Approvals
DIN VDE 0636, DIN VDE 0636-2, CSA 22.2 No. 106
Approvals
DIN VDE 0636, DIN VDE 0636-2, CSA 22.2 No. 106
Standards
IEC 60269-1, IEC 60269-2, EN 60269-1
Product Details
Specifications
| Attribute | Value |
|---|---|
| Fuse Standard | CSA 22.2 No.106 File No. 1710842, DINVDE 0636, DINVDE 0636-2, EN 60269-1, IEC 60269-1, IEC 60269-2 |
| Fuse Size | 00 |
| Current Rating | 160 A |
| Voltage Rating | 500 V ac |
| High Rupture Capacity | Yes |
| Overall Length | 80mm |
| Body Width | 30mm |
| Body Length | 54mm |
| Application Category | GG |
| Fuse Type | NH |
