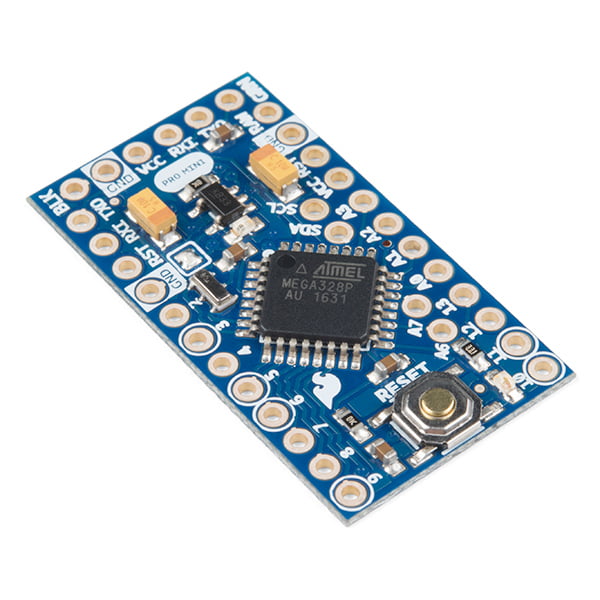

Arduino Pro Mini
BD 9.500
Arduino Pro Mini Atmega328 running the 8MHz bootloader (select ‘Duemilanove w/ 328’ within the software). Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.The For Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board.
We used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.
We used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.
Features:
- ATmega328 running at 8MHz with external resonator (0.5% tolerance)
- Low-voltage board needs no interfacing circuitry to popular 5V devices and modules (GPS, accelerometers, sensors, etc)
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- Reverse polarity protected
- DC input 5V up to 12V
- On board Power and Status LEDs
Choose Quantity
Product Details
Features:
- ATmega328 running at 8MHz with external resonator (0.5% tolerance)
- Low-voltage board needs no interfacing circuitry to popular 5V devices and modules (GPS, accelerometers, sensors, etc)
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- Reverse polarity protected
- DC input 5V up to 12V
- On board Power and Status LEDs
