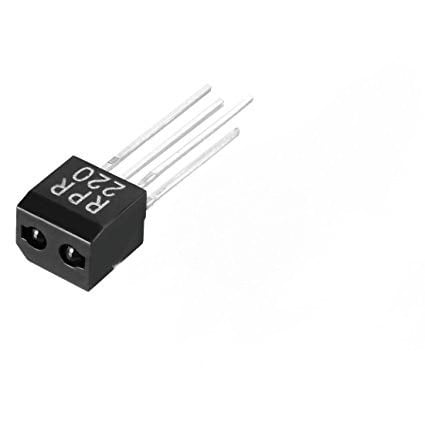

Photointruptor RPR220
BD 2.500
RPR220 is a kind of integration reflection type photoelectric detector.
Mainly used in the game, copy machines and office automation, equipment.
The transmitter is a gallium arsenide infrared light emitting diode, and receiver is a high sensitivity, silicon plane photoelectric triode.
Specification:
Product Name : Optical Sensor Switch
Model : RPR220
Color : Black
Net Weigh : 3g
Material : Plastic, Metal
Detection Distance：1-13mm
Working Voltage:DC 30V(Max)
Output Type:Photo Transistor
Output:30mA(Max)
Number of Pins:4
Pin Length:16.3mm/0.64"
Black Head Size :6.5 x 4.9 x 6.5mm/0.26'' x 0.19'' x0.26''(L*W*H)
Total Size:22.8 x 4.9 x 6.3mm/0.9'' x 0.19'' x 0.25'' (L*W*H)
Package Content : 5pcs x Optical Sensor Switch
Detection distance is not adjustable
Detection object ：opaque objects
Mainly used in the game, copy machines and office automation, equipment.
The transmitter is a gallium arsenide infrared light emitting diode, and receiver is a high sensitivity, silicon plane photoelectric triode.
Specification:
Product Name : Optical Sensor Switch
Model : RPR220
Color : Black
Net Weigh : 3g
Material : Plastic, Metal
Detection Distance：1-13mm
Working Voltage:DC 30V(Max)
Output Type:Photo Transistor
Output:30mA(Max)
Number of Pins:4
Pin Length:16.3mm/0.64"
Black Head Size :6.5 x 4.9 x 6.5mm/0.26'' x 0.19'' x0.26''(L*W*H)
Total Size:22.8 x 4.9 x 6.3mm/0.9'' x 0.19'' x 0.25'' (L*W*H)
Package Content : 5pcs x Optical Sensor Switch
Detection distance is not adjustable
Detection object ：opaque objects
