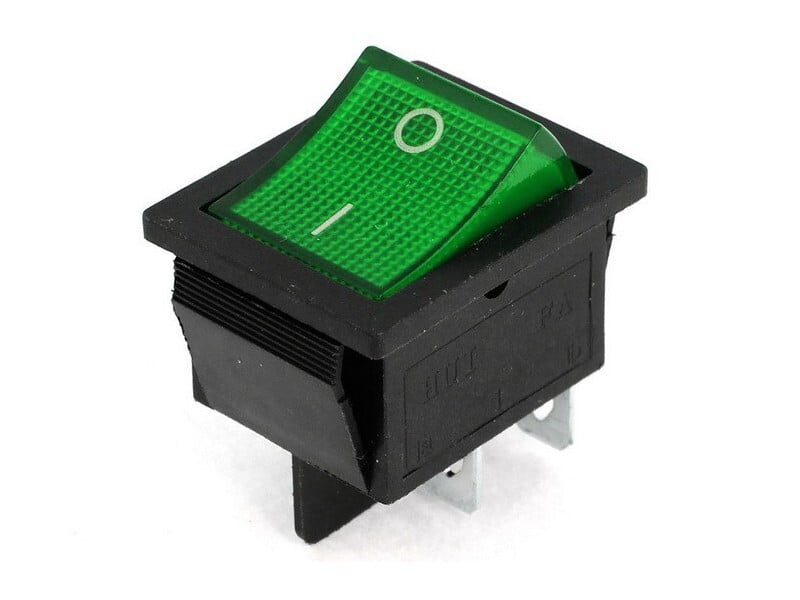

ROCKER SWITCH Green ON/OFF DPST (WITH LAMP) 16A 250VAC PANEL MOUNT
From ZF, the WR series of double pole on-off rocker switches designed for panel mounting. With a choice of red or green illumination or standard non-illuminated black actuators, these rugged rocker switches are ideally suited to high current applications. Once a 30 x 22 mm cut-out is made these latching rockers easily snap-in to the panel and are retained securely with the self-locking ribs. The WR series of rocker switches are ideal for maintenance, repair and new prototype work.
Features and Benefits
• AC mains rated
• Nylon 66 moulded casing to UL 94V-2
• Durable silver alloy contacts for up to 16A switching
• Self-locking compensation ribs for tight fit
• 3 mm contact gap
• Connection via 6.3 x 0.8 mm quick connect tab terminals
• Option for I/O markings on actuator
• DPST switch configuration
• Splash-proof cover available separately
Rocker switches are one of the most frequently used electrical switches used in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:
• Automation control
• Power supplies
• Control panels
• Security equipment
• Heating and ventilation
• Heavy duty plant equipment
