Loudness sensor Grove
Non-returnable
12.500BD

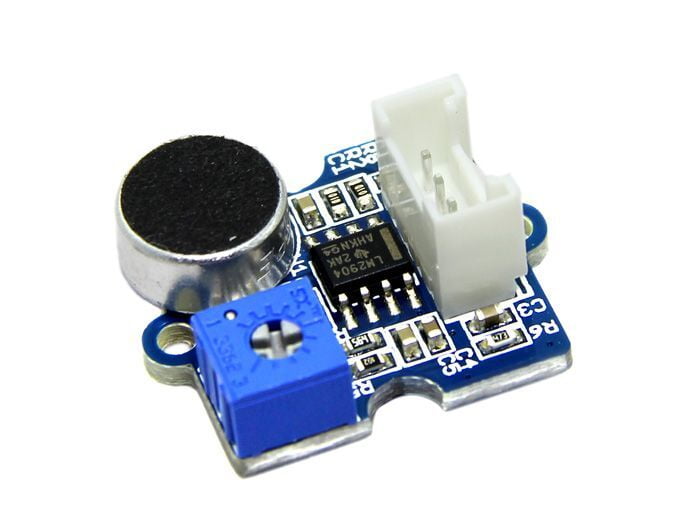

The Grove - Loudness Sensor is designed to detect the sound of environment. Based on LM2904 amplifier and a built-in microphone, it amplifies and filters the high frequency signal that received from the microphone, and outputs a positive envelop. This is used for Arduino’s signal acquisition. The output value depends on the level of sound input. In order to avoid unnecessary signal disturbances, input signal will go through two times’ filtering inside the module. There is a screw potentiometer that enables manual adjustments to the output gain.
Features
- Grove Interface
- Easy to use
- Basic Grove element
Choose Quantity
Product Details
Specifications
| Parameter | Value/Range |
|---|---|
| Voltage | 3.5~10 VDC |
| Working Frequency | 50~2000 Hz |
| Sensitivity | -48~66 dB |
| Signal-to-noise Ratio | >58 dB |
| Output Signal range | Analog Signal (0-1023) |
