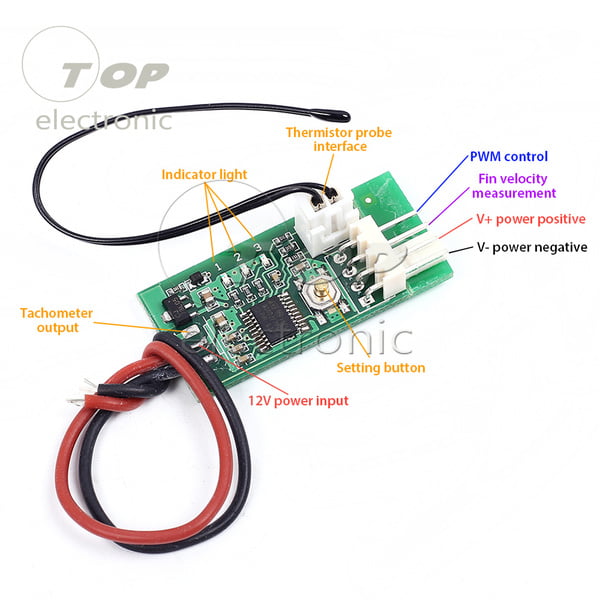

12V PWM 4-Wire Fan Temperature Controller
BD 9.500
The controller only controls the standard four-line Intel PWM fan speed, does not turn off the fan. With full digital control, precise temperature setting and precise control. It incorporates manual speed regulation and automatic temperature control and speed regulation function. 10% -100% manual speed control, every 5% is a gear. 30 degrees Celsius automatic temperature control speed, there are 49 kinds of temperature zone combination. Supports three-line to four-line control, adjustment parameters are automatically saved.
Choose Quantity
Product Details
Parameter:
Parameter | Value |
Working voltage | 12 V DC can operate in the range of 8-18 V |
Fan interface | 2510-4P lacks 1 bend (special interface for computer 4P fan |
Consumption current | No more than 20 mA |
Fan current | Less than 3 a |
Drive output range | 10% -100 |
Working temperature | -10 ℃ to 60 ℃ |
Temperature probe parameters | NTC 50K B = 3950 |
Probe temperature | Small black head 120 ℃ |
Board size | 34 mm * 19 mm * 11 mm (excluding the extended interface) |
Factory default | Low speed 20%. Acceleration Width 5 ℃ |
