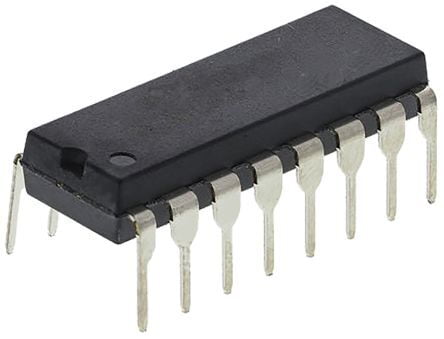

IC 75174, Interface line Driver RS422 / RS485
The SN75174 is a monolithic quadruple differential line driver with 3-state outputs. It is designed to meet the requirements of ANSI Standards EIA/TIA-422-B and RS-485 and ITU Recommendation V.11. The device is optimized for balanced multipoint bus transmission at rates up to 4 megabaud. Each driver features wide positive and negative common-mode output voltage ranges making it suitable for party-line applications in noisy environments.
The SN75174 provides positive- and negative-current limiting and thermal shutdown for protection from line fault conditions on the transmission bus line. Shutdown occurs at a junction temperature of approximately 150°C. This device offers optimum performance when used with the SN75173 or SN75175 quadruple differential line receivers.
The SN75174 is characterized for operation from 0°C to 70°C.
-7 V to 12 V
| Description | Value | |
|---|---|---|
| Data Rate | 4 MBd | |
| Data Transmission Topology | Multidrop|Multipoint | |
| Driving Mode | 3-State | |
| ESD Protection | No | |
| Interface Standards | EIA/TIA-422-B|RS-485|V.11 | |
| Lead Finish | Gold | |
| Mounting | Through Hole | |
| Number of Transmitter Enables | 1 | |
| Number of Transmitters | 4 | |
| Pin Count | 16 | |
| Power Supply Type | Single | |
| Product Dimensions | 19.3 x 6.35 x 4.57 mm | |
| Transmitter Communication Type | RS422|RS485 | |
| Transmitter Signal Type | Differential |
