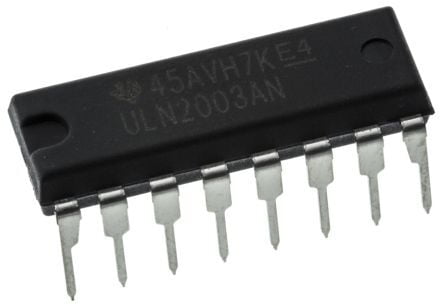

ULN2003AN (50-V, 7-ch darlington transistor array)
BD 1.800
The ULN2003AN series from Texas Instruments is through hole, high voltage and high current darlington transistor arrays in PDIP package. Each containing seven NPN darlington pairs that feature high voltage common emitter and open collector outputs with common cathode clamp diodes for switching inductive loads. The collector current rating of a single darlington pair is 500mA and darlington pairs can be paralleled for higher current capability. The ULN2003A devices have a 2.7Kohm series base resistor for each darlington pair for operation directly with TTL or 5V CMOS devices. Typical applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
- High voltage outputs of 50V
- Inputs compatible with various types of logic
- On state input voltage of 3V at 300mA collector current
- Collector to emitter saturation voltage of 1.2V at 350mA collector current
- Operating temperature range from -20°C to 70°C
- Collector current (Ic) of 500mA (single output)
Applications
Motor Drive & Control, Power Management, Industrial, Portable Devices, Consumer Electronics
Choose Quantity
Product Details
Technical Specifications
Texas Instruments ULN2003AN technical specifications, attributes, and parameters.
| Supply Chain | |
|---|---|
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 day ago) |
| Physical | |
| Case/Package | PDIP |
| Contact Plating | Gold |
| Mount | Through Hole |
| Number of Pins | 16 |
| Weight | 951.693491 mg |
| Technical | |
| Collector Emitter Breakdown Voltage | 50 V |
| Collector Emitter Saturation Voltage | 1.1 V |
| Collector Emitter Voltage (VCEO) | 50 V |
| Current Rating | 500 mA |
| Emitter Base Voltage (VEBO) | 50 V |
| Forward Voltage | 1.7 V |
| Input Capacitance | 15 pF |
| Input Current | 930 µA |
| Max Collector Current | 500 mA |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Channels | 7 |
| Number of Drivers | 7 |
| Number of Elements | 7 |
| Output Voltage | 50 V |
| Polarity | NPN |
| Voltage Rating (DC) | 50 V |
| Dimensions | |
| Height | 5.08 mm |
| Length | 19.3 mm |
| Thickness | 3.9 mm |
| Width | 6.35 mm |
| Compliance | |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
