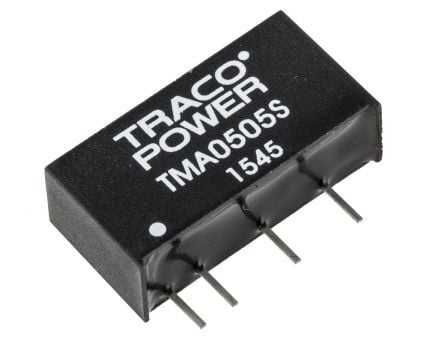

DC/DC CONVERTER TMA 0505S (TMA0505S)
Non-returnable
4.500BD
The TMA 0505S from Tracopower is a single output, miniature, isolated, 1W DC to DC converter in SIP package. It requires only 1.2cm² board space and ideal solution in many space critical applications for board level power distribution. The use of SMD technology makes it possible to offer a product with high performance at low cost.
- Input voltage is 5VDC
- Output voltage is 5VDC
- Output current is 200mA
- Typical efficiency is 71%
- I/O isolation is 1KVDC
- Operating temperature range from -40°C to 85°C
- Industry standard pin-out configuration
- Dimension is 19.5mm x 10.2mm x 6.1mm (D x H x W)
Choose Quantity
Product Details
Specifications
Load Regulation
±10%
Depth
10.2mm
Isolation Voltage
1kV dc
Length
19.5mm
Package
SIP 6
Brand
TRACOPOWER
Input Voltage Nominal
5 V dc
Output Voltage
5V dc
Series
TMA
Input Voltage Range
4.5 → 5.5 V dc
Number of Outputs
1
Minimum Temperature
-40°C
Mounting Type
Through Hole
Maximum Temperature
+85°C
Power Rating
1W
Efficiency
71%
Output Current
200mA
