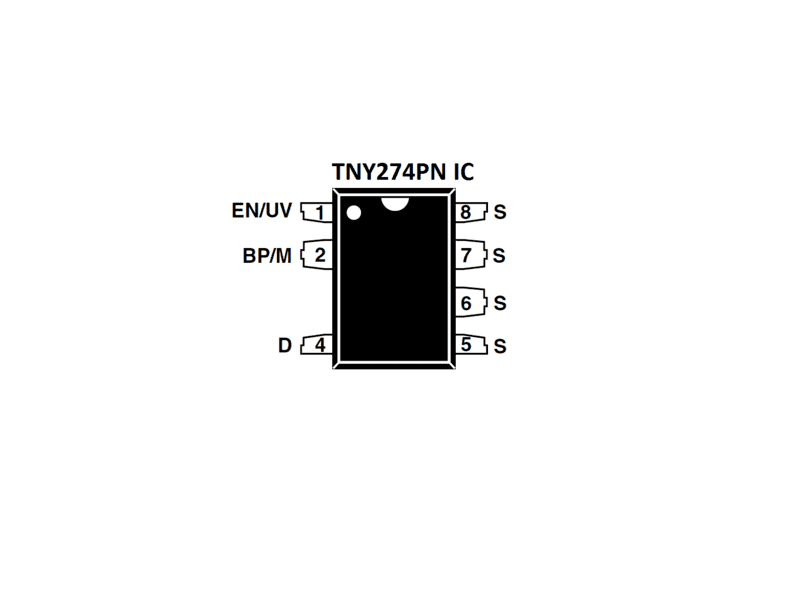

TNY274, PMIC, AC/DC Switcher, 6W
The TinySwitch-III family provides Low Power AC-DC Power Conversion (Up to 36.5 W)
700V Internal MOSFET Rating
Frequency Jitter Reduces EMI
EcoSmart® Low Standby/No-load Power Consumption
Latching Output Overvoltage Protection
Line Undervoltage (UV) Lockout
Selectable Current Limit
TinySwitch-III incorporates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.
Simple ON/OFF control, no loop compensation needed
Selectable current limit through BP/M capacitor value
Maximizes MOSFET and magnetics power delivery
Minimizes max overload power
ON-time extension
Self-biased: no bias winding or bias components
Frequency jittering reduces EMI filter costs
Pin-out simplified es heatsinking to the PCB
Specification:-
Symbol | Parameter | Min | Type | Max | Units |
VBP | BYPASS Pin Voltage | 5.6 | 5.85 | 6.15 | V |
VBPH | BYPASS Pin Voltage Hysteresis | 0.80 | 0.95 | 1.2 | V |
VSHUNT | BP/M Pin Shunt Voltage | 6 | 6.4 | 6.7 | V |
ICH1 | BP/M Pin Charge Current | -6 | -3.8 | -1.8 | m A |
