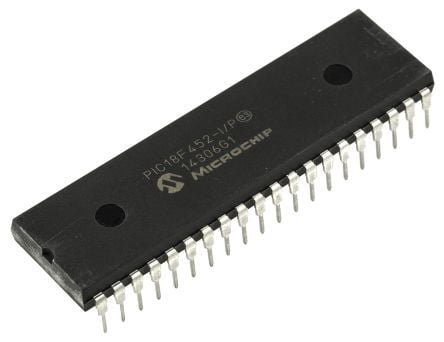

PIC18F452 (32kB 40MHz Microcontroller)

Name: PIC18F452 (32kB 40MHz Microcontroller)
Brand: MICROCHIP TECHNOLOGY
SKU: PIC/18F/452
Price: 8.9 BHD
Availability: InStock

BD 8.900

PIC18F452 is an 8-bit with 10 MIPS, CMPS, FLASH-based microcontroller that has 34 I/O pins out of 40 Pin packages. It is a powerful microcontroller with one 8-bit and three 16-bit timers, 8-Channels 10-bit Analog-digital converter, and I2C, SPI, USART peripheral. It is a Low power microcontroller unit that consumes about less than 0.2 uA standby current and 1.6mA normal current during 5V and 4 Mhz operations.

PIC18F452 also has the feature of Programming code protection, Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up timer with power saving sleep mode. The watchdog timer features its own On-Chip RC Oscillator for reliable operations. 2V to 5.5V operating voltage makes the 18F452 suitable for 3.3V and 5.0V logic level operations. Below image is showing the pin diagram of PIC18F452-

PIC18F452 Pin Diagram

Detailed Features of PIC18F452

PIC18F452 –Detailed Features
CPU	8-bit
Architecture	8-bit
Program Memory Size (Kbytes)	32 KB
RAM (bytes)	1536 bytes
EEPROM/HEF	256 byte
Pin Count	40
Max. CPU Speed (MHz)	40MHz
Peripheral Pin Select (PPS)	No
Internal Oscillator	No
No. Of comparators	Nil
No. OfOperational Amplifier	Nil
No. Of ADC channels	8
Max ADC Resolution (bits)	10-bits
ADC with Computation	No
Number of DAC Converter	Nil
Max DAC resolution	-
Internal Voltage Reference	No
Zero Cross Detect	No
No. Of 8-bit timers	1
No. Of 16-bit Timers	3
Signal Measurement Timer	No
Hardware Limit Timer	No
No. Of PWM outputs	2
Max PWM resolution	8-bit
Angular Timer	No
Math Accelerator	No
No. OfUART module	1
No. Of SPI Module	1
No. Of I2C module	1
No. Of USB Module	Nil
Windowed Watchdog Timer (WWDT)	No
CRC/Scan	No
Numerically Controlled Oscillator	No
Cap. Touch Channels	Nil
Segment LCD	No
Minimum Operating Temperature (*C)	-40°C
Maximum Operating Temperature (*C)	125°C
Minimum Operating Voltage (V)	2V
Maximum Operating Voltage (V)	5.5 V
High Voltage Capable	No

Choose Quantity

+ Add to Cart

Product Details

Application of PIC18F452

This is a basic Mid-range 8-bit microcontroller unit that can be used in the following applications-

Input-Output operations
Control Applications
Analog data Processing
Sensors integration and data logging
Small scale, low cost embedded application based production
