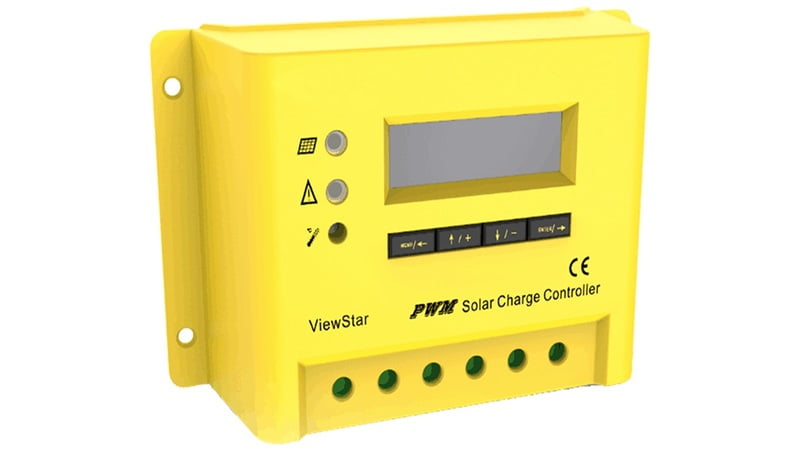

PWM Solar Charge Controller 12/24/36/48V, 60A
BD 195.000
Model: VS6048BN 60A, 12V/24V/36V/48V Auto Work
Maximum allowable voltage of the battery:64V
Rated charging / discharging current: 30A
Maximum open circuit voltage: 96V
Battery Type:Sealed/Gel/Flooded
Boost charging voltage: Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, custom: 9-17V
Balanced charging voltage: Gel: —/sealed: 14.6V / Flooded: 14.8V, custom: 9-17V
Float Charge:Sealed/Gel/Flooded: 13.8V Custom: 9-17V
Low voltage disconnection recovery voltage: Sealed / Gel/ Flooded: 12.6V Custom: 9-17V
Low Voltage Disconnect Voltage:Sealed/Gel/Flooded: 11.1V Custom: 9-17V
Self-consumption: ≤15mA (12V): ≤24mA (24V)
Grounding type: negative ground
Temperature compensation: -3mV / °C / 2V
Protection rank:IP 30
Working temperature:-25°C ~+55°C
Weight :1.5kg
Size:205x174x64mm
Maximum allowable voltage of the battery:64V
Rated charging / discharging current: 30A
Maximum open circuit voltage: 96V
Battery Type:Sealed/Gel/Flooded
Boost charging voltage: Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, custom: 9-17V
Balanced charging voltage: Gel: —/sealed: 14.6V / Flooded: 14.8V, custom: 9-17V
Float Charge:Sealed/Gel/Flooded: 13.8V Custom: 9-17V
Low voltage disconnection recovery voltage: Sealed / Gel/ Flooded: 12.6V Custom: 9-17V
Low Voltage Disconnect Voltage:Sealed/Gel/Flooded: 11.1V Custom: 9-17V
Self-consumption: ≤15mA (12V): ≤24mA (24V)
Grounding type: negative ground
Temperature compensation: -3mV / °C / 2V
Protection rank:IP 30
Working temperature:-25°C ~+55°C
Weight :1.5kg
Size:205x174x64mm
Electronic protections:
- PV short circuit protection
-PV polarity reverse connection protection
-Battery over discharge protection
-Battery over-pressure protection
-Battery polarity reverse connection protection
-load overload protection
- load short circuit protection
-Over temperature protection
- PV short circuit protection
-PV polarity reverse connection protection
-Battery over discharge protection
-Battery over-pressure protection
-Battery polarity reverse connection protection
-load overload protection
- load short circuit protection
-Over temperature protection
Packge :
1 x VS6048BN solar charge controller
1 x Manual(English)
1 x VS6048BN solar charge controller
1 x Manual(English)
Choose Quantity
Product Details
- ☞ViewStar series solar controllers are designed for off-grid solar systems such as street lights, solar home systems or small power stations.
- ☞ It has LCD display, programmable working data, communication function with PC monitoring software through RS485 port, real-time monitoring and battery management parameter setting.
- ☞ Four types of battery charging procedures: Sealed,Gel,Flooded and user-defined.
- ☞ Various load control modes: pure light control, light control start + delay off, timing control, manual switch.
- ☞Excellent EMC design, new SOC calculation, accurate display of battery available capacity.
