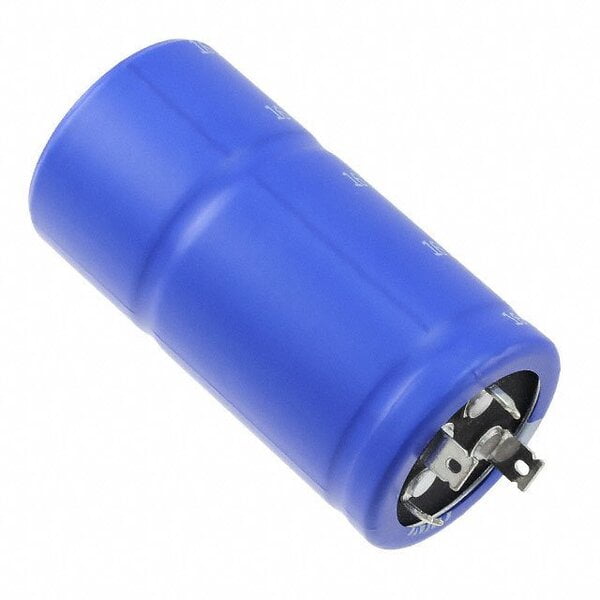

2.7V 400F Super Capacitors Ultra-capacitors
Capacitor: 400F
Rated voltage: 2.7 V
Tolerance: 10%
Termination type: fast
Operating temperature range: - 40 C + 65 C
Trademark: Ioxus
Lead spacing: 10 mm
Product: Supercapacitor
application:
n high power
n high cycling
High cycle life n > 500000 cycles
n long life
n extreme temperature
Warning:This capacitor can drain or supply huge peak current when charging or discharging, please consider this when using it. Also, the over voltage will damage it, so, if you want make a serial connection, you need design a circuit to protect each of cell.
Product Name | Ultra Capacitor |
Manufactory | Kamcap |
Voltage Rating | 2.7V |
Capacitance | 400 Farad |
RoHS Compliance | Yes |
Family | Electric Double Layer (Super Capacitors) |
ESR 1KHz | <5.4mΩ |
ESR DC (Maximum) | <10mΩ |
Operating temperature | -25-60 °C |
Continuous Current | 22A |
Peak Current | 180A |
Tolerance | ±20% |
Leakage current | <0.4mA in 24hrs |
Cycle life Expectancy | >500,000 |
Weight | 70g |
