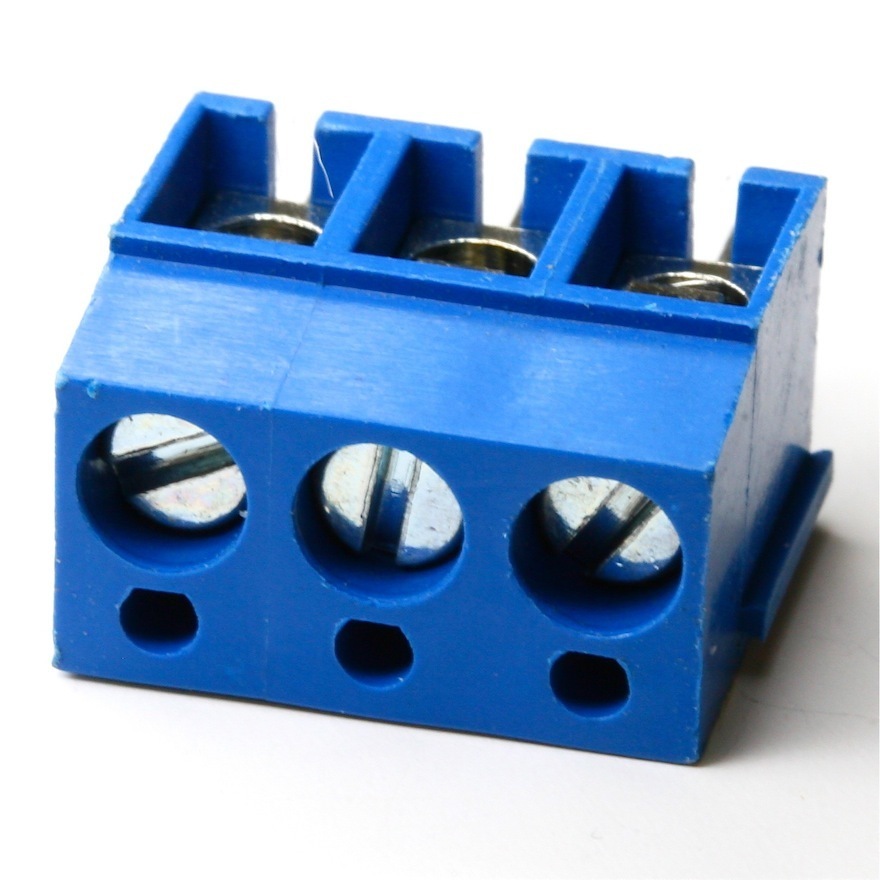

SCREW TERMINAL BLOCK 3P
BD 0.700
PCB Screw Terminal Block Connector Dg301, 3P 15A, 300V wire 12-24AWG
Other Information
Model NO.:DG301
Application:Insulators
Type:Insulation Tape
Export Markets:Global
Application:Insulators
Type:Insulation Tape
Export Markets:Global
Choose Quantity
Product Details
Pitch: 5.0mm ohm
Poles: 2p, 3p
Screw: M2.5, Steel, Zinc Plated
Wire guard: Phosphor bronze, Ni Plated or stainless steel
Pin Header: Brass Tin Plated.
Housing: PBT.
Poles: 2p, 3p
Screw: M2.5, Steel, Zinc Plated
Wire guard: Phosphor bronze, Ni Plated or stainless steel
Pin Header: Brass Tin Plated.
Housing: PBT.
Rated Voltage: 300V
Rated Current: 16A
Contact Resistance: 20
Insulation resistance: 5000 ohm /1000V
Withstanding Voltage: AC1500V/1min
Wire Range: 22-14AWG
Rated Current: 16A
Contact Resistance: 20
Insulation resistance: 5000 ohm /1000V
Withstanding Voltage: AC1500V/1min
Wire Range: 22-14AWG
Temperature Range: -30C~+120C
Max Soldering: +250C for 5 sec.
Torque: 0.5Nm(3.6lb. In)
Strip Length: 4.5~5mm
Max Soldering: +250C for 5 sec.
Torque: 0.5Nm(3.6lb. In)
Strip Length: 4.5~5mm
