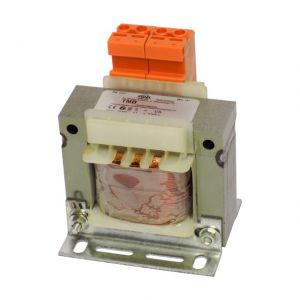

Transformer 24VA 230VAC 2.08A

A mains transformer with mounting, made using an EI shaped core without a partition.

• single-chamber body made of non-flammable glass fiber reinforced polyamide UL 94 VO
• windings wound with copper wire with single or double insulation in temperature class B, F or H
• Isolation from estrofol or pressboard
• impregnation with insulating varnish
• screw fastening on a support base

Destiny:

• power supply systems for electronic devices
• power supply equipment systems
• industrial installations

Technical data:

• rated voltage of primary winding PRI U [V]: 230V
• primary winding terminal numbers: AB
• secondary winding voltage under SEC U [V] load: 24V
• maximum secondary winding current SEC I [A]: 2.08A
• Secondary winding terminal numbers: CD
• terminal types: TRKS 4, TRKS 4SI, P, X
• Power: 50W
• insulation test: 4kV / 60s
• insulation class: I
• thermal class T and 40B (t of 40? C, insulation class B 130? C)
• degree of protection: IP00
• core type: EI 66/35
• catalog card: 66 / EI 28-1 / 2
• dimensions (WxHxD): 66 x 80 x 60 mm
• weight: 0.9kg
