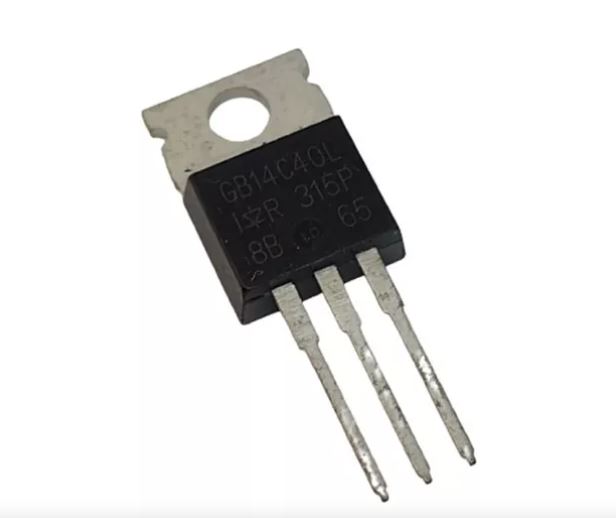

IRGB14C40LPBF IGBT, 20A, 430V
BD 4.000
The IRGB14C40LPBF is a 430V Ignition IGBT with on chip gate emitter and gate collector clamps. The advanced IGBT process family includes a MOS gated, N-channel logic level gate drive which is intended for coil on plug automotive ignition applications and small engine ignition applications.
- >6kV ESD gate protection
- High self clamped inductive switching energy
- Low saturation voltage
Applications
Automotive
Choose Quantity
Product Details
Specifications
Maximum Operating Temperature
+175 °C
Length
10.54mm
Transistor Configuration
Single
Brand
Infineon
Maximum Collector Emitter Voltage
430 V
Maximum Continuous Collector Current
20 A
Package Type
TO-220AB
Maximum Power Dissipation
125 W
Mounting Type
Through Hole
Minimum Operating Temperature
-40 °C
Width
4.69mm
Height
15.24mm
Pin Count
3
Dimensions
10.54 x 4.69 x 15.24mm
Switching Speed
1kHz
Channel Type
N
