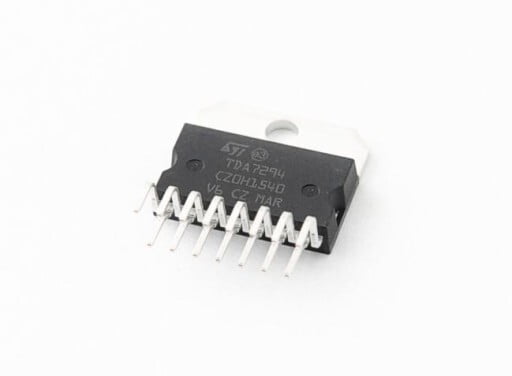

TDA7294 (100V 100W DMOS Audio Amplifier with mute and standby)
BD 8.500
The TDA7294 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4Ω and 8Ω loads even in presence of poor supply regulation, with high Supply Voltage Rejection.
The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Choose Quantity
Product Details
KEY FEATURES
- THERMAL SHUTDOWN
- SHORT CIRCUIT PROTECTION
- VERY LOW DISTORTION
- NO BOUCHEROT CELLS
- VERY HIGH OPERATING VOLTAGE RANGE (±40V)
- HIGH OUTPUT POWER (UP TO 100W MUSIC POWER)
- DMOS POWER STAGE
- NO SWITCH ON/OFF NOISE
- VERY LOW NOISE
- MUTING/STAND-BY FUNCTIONS
