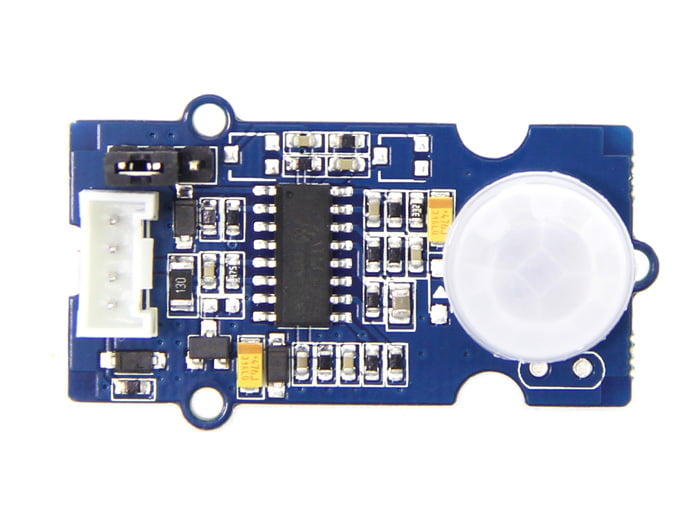

PIR Motion Sensor (Grove) v1.2
This Grove - PIR Motion Sensor(Passive Infrared Sensor) can detect infrared signal caused by motion. If the PIR sensor notices the infrared energy, the motion detector is triggered and the sensor outputs HIGH on its SIG pin. The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3s - 25s, and max 6 meters of detecting range.
The Grove - PIR Motion Sensor(Passive Infrared Sensor) is an easy-to-use motion sensor with Grove compatible interface. Simply connecting it to Base Shield and programming it, it can be used as a suitable motion detector for Arduino projects. For example, the PIR Motion Sensor are commonly used in security alarm systems and automatic lighting applications.
The PIR Motion Sensor Series includes several products that will meet your different needs:
| Product | Measuring range (theoretical value) | Features |
|---|---|---|
| Grove - PIR Motion Sensor | Max Distance:3-6m(3m by default) Angle:< 120° | Measuring distance and holding time adjustable response speed:0.3s - 25s |
| Grove-Adjustable PIR Motion Sensor | Max Distance:3-6m Angle:X=110° Y="90° | Measuring distance and holding time adjustable |
| Grove - mini PIR motion sensor | Max Distance:2-5m(2m by default) Angle:X=110° Y="90° | Sensitivity adjustable Mini-size |
| PIR Motion sensor module | Max Distance:3-7m Angle:< 120° | Sensitivity & Delay time adjustable |
| Grove - Digital PIR Motion Sensor | Max Distance: 3-12m Angle:< 100° | Mini-size Simple and intuitive |
Grove compatible interface
Voltage range: 3V–5V
Size: 20mm x 40mm
Detecting angle: 120 degree
Detecting Max distance: 6m (3m by default)
Adjustable detecting distance and holding time
Motion Sensor
Motion Detector
Security Alarm System
Human Detection System
