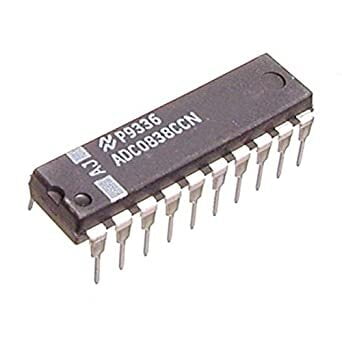

ADC0838CCN (8 bit A/D Convertor with Multiplexer)

BD 4.500
The ADC0838CCN is a 8-bit successive approximation Analog-to-digital Converter (ADC) with a serial I/O and configurable input multiplexers with up to 8-channel. The serial I/O is configured to comply with the TI MICROWIRE serial data exchange standard for easy interface to the COPS family of processors and can interface with standard shift registers or µPs. The multiplexers are software configured for single‐ended or differential inputs as well as channel assignment. The differential analog voltage input allows increasing the common‐mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8-bit of resolution.

Features:
  • Easy interface to all microprocessors or operates stand-alone
  • Operates ratiometrically or with 5VDC voltage reference
  • No zero or full‐scale adjust required
  • Shunt regulator allows operation with high voltage supplies
  • Remote operation with serial digital data link
  • TTL/MOS Input/output compatible
  • Green product and no Sb/Br
