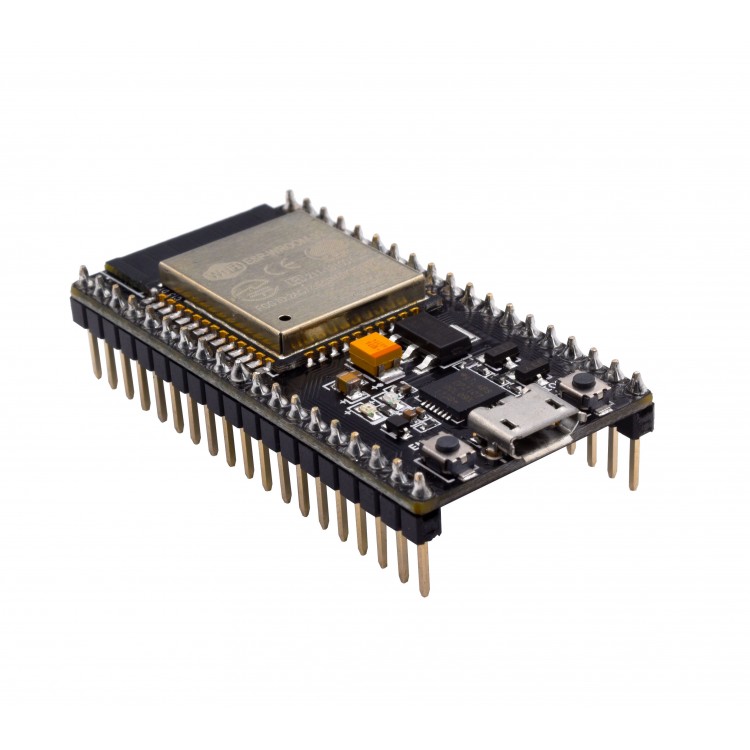

NODEMCU-32S LUA ESP32 MODULE (WIFI)
This board is used with dual mode WiFi and Bluetooth chips by tsmc 40 Nm low power technology. esp32 is already integrated and RF Balun antenna, power amplifier, low noise amplifier power, filters and management module. The board has an integrated micro USB port, soldered and integral Antenna headers. Please Note: Images are for representation use only. In the actual product the pins are un-soldered.
Description:
WiFi: 802.11 b/g/n/e/i
Bluetooth: BR/EDR+BLE
CPU: Xtensa 32-bit LX6 Dual-Core
RAM: 520KBytes
Input Voltage:2.3V to 3.6V
Key Feature:
Xtensa 32-bit LX6 Dua-core processor, up to 600 DMIPS.
448 KByte ROM
520 KByte SRAM
16 KByte SRAM in RTC.
QSPI can connect up to 4* Flash / SRAM, each flash should be less than 16 Mbytes.
Supply Voltage: 2.2V~3.6V
