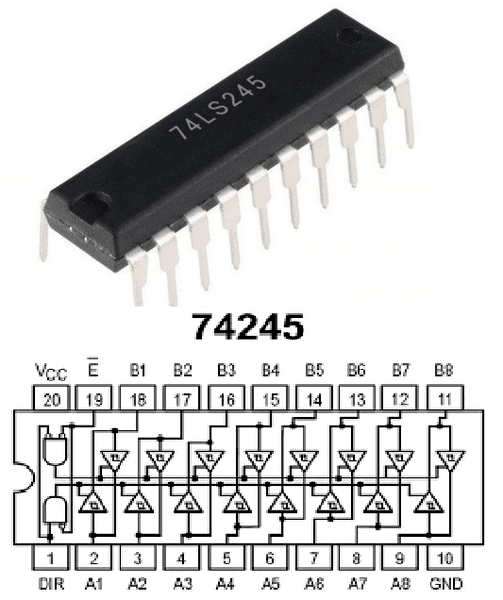

IC 74245 (8-bit Transceiver)
BD 2.000
74HC245 is basically and 8-bit transceiver. It has 3 output states. The data can be transferred in both directions depending upon the logic level at direction control (DIR). You can enable and disable the device from the output enable (OE) pin. low power consumption, wide voltage range, low input current are the major features associated with 74HC-245. 74HC 245 is mostly used in personal computers, servers, wearable health devices, fitness devices, network switches, electronic points of sale etc
Choose Quantity
Product Details
Features
- 8-bit transceiver with 3-state
- Supply Voltage: 2V to 6V
- Output Voltage is equal to Vcc
- Minimum Input Voltage: 0.8V
- Maximum Input Voltage: 4.2V
- Minimum Output Voltage: 1.9V
- Maximum Output Voltage: 5.4V
- Output Current: 35mA
- Off-State Output Current: 10uA
- Non-Inverting, hence easy to interface
- Available in 20-pin SO20, SSOP20, TSSOP20 and DHVQFN20 packages
