470uF, 16V Capacitor
BD 0.200
Electrolytic capacitors are commonly used electronic components of electronic professionals or amateurs when making circuit. Due to their very thin dielectric oxide layer and enlarged anode surface, electrolytic capacitors have, based on the volume, a higher capacitance voltage product compared to other capacitors

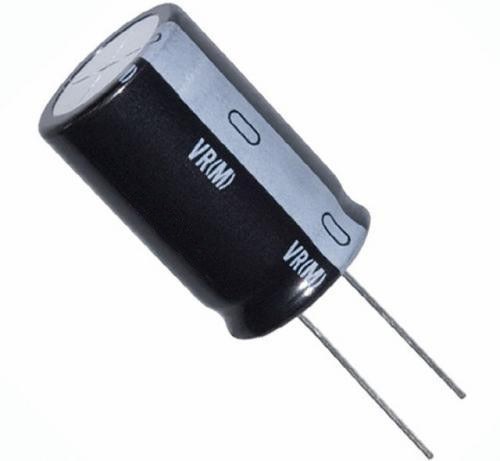

The Electrolytic Capacitors have polarity. Meaning they have a positive and negative pin. The pin which is long is the positive pin and the pin which is short is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.
Features
- Capacitor Type - Electrolytic
- Has a high range of capacitance value starting from 0.01uF to 10000uF
- Has a high range of voltage value starting from 16V to 450V
- Can withstand a maximum of 105°C temperature
Choose Quantity
Product Details
Specifications:
Type: Radial Lead
Features: Standard General Purpose
Maximum Temperature: 105°C
Withstand Voltage: 16V
Capacitance: 470uF
Capacitance Tolerance: ±20%
Body Size: 8 x 12mm / 0.31 x 0.47 inch (D*L)
Lead Spacing: 3mm / 0.11 inch
Lead Length: 25mm / 0.98 inch, 20mm / 0.79 inch
Dielectric Material: Aluminum
Features: Standard General Purpose
Maximum Temperature: 105°C
Withstand Voltage: 16V
Capacitance: 470uF
Capacitance Tolerance: ±20%
Body Size: 8 x 12mm / 0.31 x 0.47 inch (D*L)
Lead Spacing: 3mm / 0.11 inch
Lead Length: 25mm / 0.98 inch, 20mm / 0.79 inch
Dielectric Material: Aluminum
