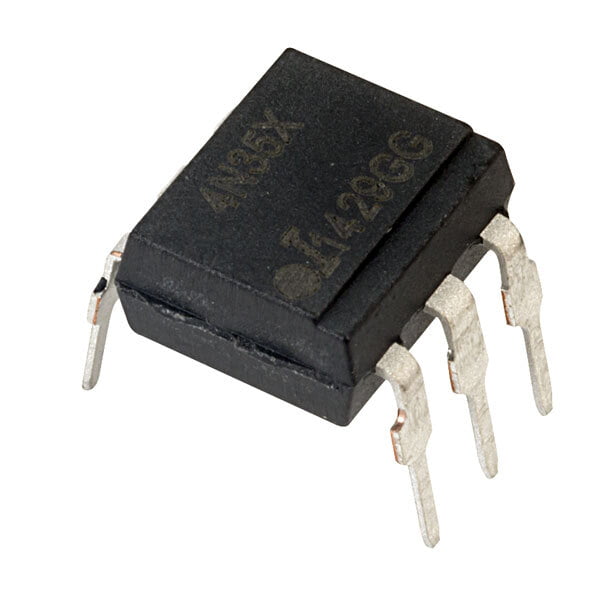

4N35X (Phototransistor Output, Optocoupler IC)
BD 1.500
The 4N35, 4N36, 4N37 are optically coupled isolators consisting of a Gallium Arsenide infrared emitting diode and an NPN silicon phototransistor mounted in a standard 6-pin dual-in-line package. Surface Mount Option Available. All electrical parameters are 100% tested by manufacturing. Specifications are guaranteed to a cumulative 0.65% AQL.
3500, 2500 or 1500 Volt Isolation
High DC Current Transfer Ratio (100% min)
Low Cost Dual-In-Line Package.
APPLICATIONS
• AC mains detection
• Reed relay driving
• Switch mode power supply feedback
• Telephone ring detection
• Logic ground isolation
• Logic coupling with high frequency noise rejection
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | Phototransistor |
| Maximum Forward Voltage | 1.5V |
| Number of Channels | 1 |
| Number of Pins | 6 |
| Package Type | PDIP |
| Input Current Type | DC |
| Typical Rise Time | 2µs |
| Maximum Input Current | 60 mA |
| Isolation Voltage | 5.3 kVrms |
| Typical Fall Time | 2µs |
| Minimum Current Transfer Ratio | 100 % |
