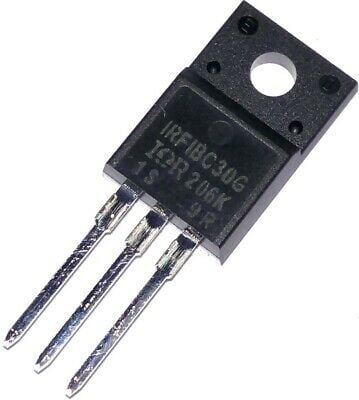

IRFIBC30, Transistor, MOSFET N-CH, 600V, 1.6A
Non-returnable
BD 3.000
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single screw fixing.
Key Features
- Isolated Package
- High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
- VDS: 600 V
Choose Quantity
Product Details
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8541.29.00.95 |
| Package Width | 4.83(Max) |
| Package Height | 16.12(Max) |
| Package Length | 10.63(Max) |
| Tab | Tab |
| PCB changed | 3 |
| Lead Shape | Through Hole |
| Mounting | Through Hole |
| Product Category | Power MOSFET |
| Configuration | Single |
| Channel Mode | Enhancement |
| Channel Type | N |
| Number of Elements per Chip | 1 |
| Maximum Drain Source Voltage (V) | 600 |
| Maximum Gate Source Voltage (V) | ±20 |
| Maximum Continuous Drain Current (A) | 2.5 |
| Maximum Drain Source Resistance (mOhm) | 2200@10V |
| Typical Gate Charge @ Vgs (nC) | 31(Max)@10V |
| Typical Gate Charge @ 10V (nC) | 31(Max) |
| Typical Input Capacitance @ Vds (pF) | 660@25V |
| Maximum Power Dissipation (mW) | 35000 |
| Typical Fall Time (ns) | 14 |
| Typical Rise Time (ns) | 13 |
| Typical Turn-Off Delay Time (ns) | 35 |
| Typical Turn-On Delay Time (ns) | 11 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Automotive | No |
| Supplier Package | TO-220FP |
| Standard Package Name | TO-220 |
| Pin Count | 3 |
| Military | No |
