 High-Performance RISC CPU
- - Only 35 single word instructions to learn
- - All instructions are single cycle (1µs) except for program branches
- - Operating speed: DC - 20MHz clock input
- - 1 kBytes Flash Program Memory
- - 64 Byte RAM Data Memory
- - 128 Byte EEPROM Data Memory
- - In-circuit Serial Programming
- - Interrupt Capability
Peripheral Features - - One 8-bit timer/counter with 8-bit programmable prescalar
- - One 16 bit timer/counter
- - High current source/sink for direct LED drive
- - Watchdog Timer (WDT) with Separate RC Oscillator
- - Analog Comparator
- - Eight Channel, 10-bit Analog to Digital Converter
Special Microcontroller Features - - Power-On Reset
- - Power-up Timer (PWRT) and Oscillator Start-Up Timer (OST)
- - 1,000 erase/write cycles Enhanced Flash Program Memory
- - 1,000,000 typical erase/write cycles EEPROM Data Memory
- - Selectable Oscillator Options
CMOS Technology - - Low power, high speed CMOS FLASH technology
- - Fully Static Design
- - Low Power Consumption
I/O and Packages - - 12 I/O pins with individual direction control

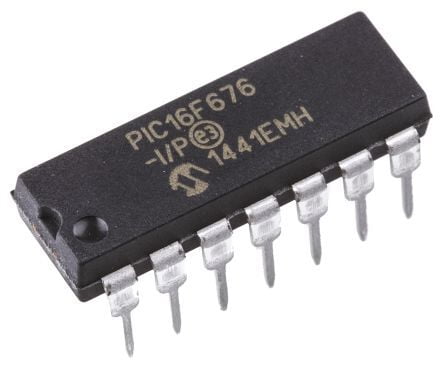

- - 14-pin DIP
|
