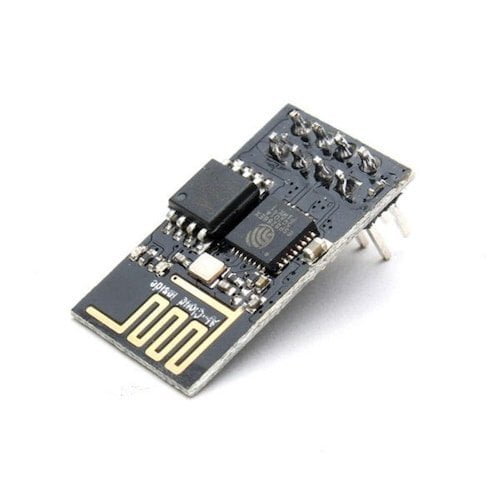

ESP8266EX ESP-01S WIRELESS TRANSCEIVER MODULE
BD 8.500
ESP8266 ESP-01S remote serial Port WIFI wireless module it is UPGRATE version of ESP-01 ESP8266 Module
This is the updated version of the ESP-01E - the PCB layout has changed for an improvement in WiFi radio performance. Otherwise it works the same, including pinout, programming etc.
The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.
This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existance interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.
FEATURES:
- 1MB (8Mbit) Flash size.
- Very competitive price
- AP, STA, AP+STA modes available.
- Very simple AT commands, easy to use.
- Internal LWIP interface.
- Four pins interface, VCC-3V3, GND, TXD and RXD. Two extra GPIOs can use.
- AT commands firmware. New IC ESP8266ex
- Package – All unit packaing is in tape reel, 800pcs per reel.
Choose Quantity
Product Details
specifications:
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- 1MB Flash Memory
- Integrated low power 32-bit CPU could be used as application processor
- SDIO 1.1 / 2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
