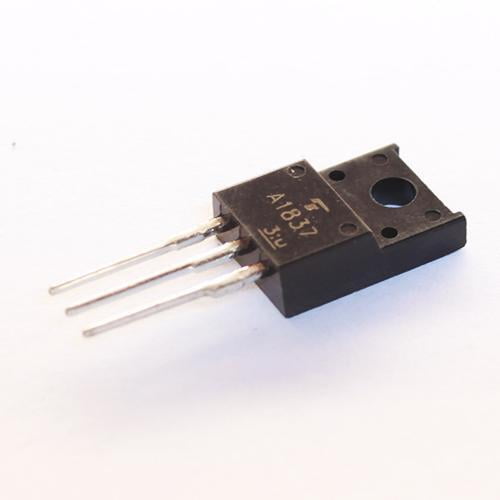

2SA1837 Bipolar Transistor (PNP)
BD 1.500
Trans GP BJT PNP 230V 1A 3-Pin(3+Tab) TO-220NIS
Key Features
- High transition frequency: fT = 70 MHz (typ.)
- Complementary to 2SC4793
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Lead Finish | Tin/Lead | |
| Max Processing Temp | 240 | |
| Maximum Collector Base Voltage | 230 V | |
| Maximum Collector Emitter Saturation Voltage | 1.5@50mA@500mA V | |
| Maximum Collector Emitter Voltage | 230 V | |
| Maximum DC Collector Current | 1 A | |
| Maximum Emitter Base Voltage | 5 V | |
| Minimum DC Current Gain | 100@100mA@5V | |
| Mounting | Through Hole | |
| Operating Temperature | -55 to 150 °C | |
| Pin Count | 3 | |
| Product Dimensions | 10 x 4.5 x 15 mm | |
| Supplier Package | TO-220NIS | |
| Type | PNP |
