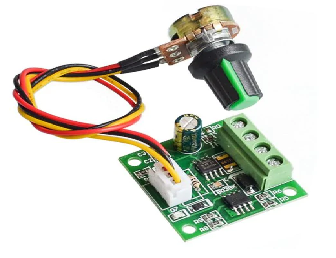

DC Motor Speed Controller 1.8v to 12v
Non-returnable
BD 12.500
1803B DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated(PWM)DC voltage with a Duty Cycle fully adjustable from 0%-100%.
The motor speed controller is with a self-recovery fuse 2A and a Power -On LED light.It can easily provide a continuous current of 2A to your DC motor or other DC load.
Main technical parameters:
The product is equipped with a self-resetting fuse
If the current is too large, the fuse will be automatically disconnected and the fuse will automatically recover after cooling.
Size: 32*32*14mm
DC 1.8-15V voltage range
Applicable current 2A or less
Choose Quantity
Product Details
Features
Input supply voltage: 1.8V-15VDC.
The maximum output power: 30W.
The maximum continuous output current :2A.
Duty Cycle adjustable: 5%-100%,potentiometer with switch function.
Item size: 1.3*1.3*0.6 inches ; Net Weight:20g.
Features:
1803BKW DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
The input power range is DC 1.8-15V .
Use a 2A resettable fuse to protect the controller.
Potentiometer cable length 20cm.
Weight:20g.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram" (NO.5 picture).
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Package Including:
1 x DC Motor Speed Controller
The maximum output power: 30W.
The maximum continuous output current :2A.
Duty Cycle adjustable: 5%-100%,potentiometer with switch function.
Item size: 1.3*1.3*0.6 inches ; Net Weight:20g.
Features:
1803BKW DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
The input power range is DC 1.8-15V .
Use a 2A resettable fuse to protect the controller.
Potentiometer cable length 20cm.
Weight:20g.
Operating instruction:
Before you attempting to wire the controller, make sure power is off.
WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
1. Connect wires refer to the "wiring diagram" (NO.5 picture).
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.
Package Including:
1 x DC Motor Speed Controller
