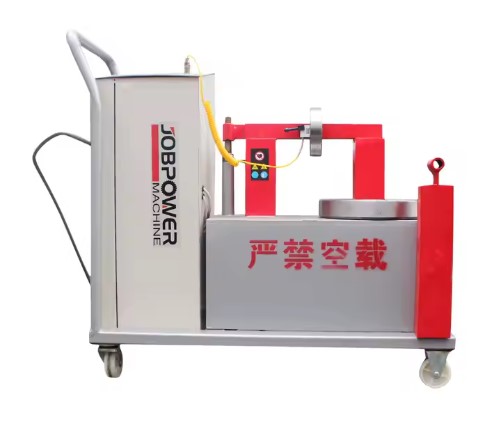

PRE ORDER FY- 1, 2, 3, 4 induction bearing heater, magnetic temperature probe
0.000BD
Out of stock
The new FY series induction heater is mainly used for heating metal bearings, gears, bushings, sleeves, rings, pulleys, shrinking various types of connectors, and can be expanded through heating to meet assembly needs. The heat sink design provides better heat dissipation.
Features of FY Series Bearing Heater
1. Induction heater and electromagnetic induction heater are a kind of heating tools.
2. The heating element is integrated with the platform, which is safe, reliable and easy to use.
3. It is mainly used to heat various types of metal parts such as bearing, gear, bushing, shaft sleeve, diameter ring, pulley, shrinkage ring and connector.
4. The bearing heater expands through heating to meet the needs of interference assembly.
5. The functions include: rapid setting of plate temperature, temperature, real-time temperature display, over temperature automatic protection, automatic insulation, etc.
Features of FY Series Bearing Heater
1. Induction heater and electromagnetic induction heater are a kind of heating tools.
2. The heating element is integrated with the platform, which is safe, reliable and easy to use.
3. It is mainly used to heat various types of metal parts such as bearing, gear, bushing, shaft sleeve, diameter ring, pulley, shrinkage ring and connector.
4. The bearing heater expands through heating to meet the needs of interference assembly.
5. The functions include: rapid setting of plate temperature, temperature, real-time temperature display, over temperature automatic protection, automatic insulation, etc.
Product Details
Model | FY-1 | FY-2 | FY-3 | FY-4 |
| Power (KVA) | 2.5 | 5.5 | 7.5 | 10 |
| ID Ø: mm (mm) | 30-85 | 85-160 | 120-250 | 150-360 |
| Max. OD Ø: (mm) | 280 | 350 | 400 | 450 |
| Max width: (mm) | 100 | 150 | 180 | 200 |
| Operating area (Width x Height) (mm) | 110*120 | 115*125 | 150*175 | 180*2290 |
| Maximum weight (kg) | 30 | 45 | 65 | 85 |
| Temperature control | Max. 250 °C |
