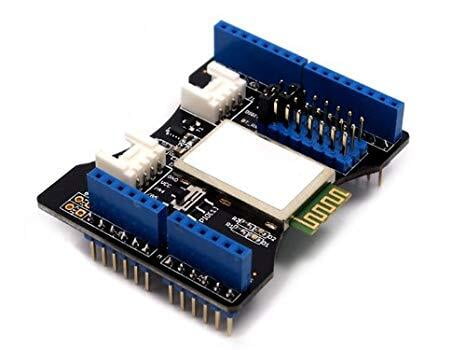

Bluetooth shield V1.1 by Seed Studio
The Bluetooth Shield integrates a Serial Bluetooth module. It can be easily used with Arduino/Seeedstudio for transparent wireless serial communication. You can choose two pins from Arduino D0 to D7 as Software Serial Ports to communicate with Bluetooth Shield (D0 and D1 is Hardware Serial Port). The shield also has two Grove connectors (one is Digital, the other is Analog) for you to install Grove modules.
FeaturesInput Voltage: 3.3V
Baudrate: 9600, 19200, 38400, 57600, 115200, 230400, 460800
Seeeduino/Arduino compatible
Up to10m communication distance in house without obstacle
UART interface (TTL) with programmable baud rate (SPP firmware installed)
Default Baud rate: 38400, Data bits: 8, Stop bit: 1, Parity: No parity
Default PINCODE:”0000”
A full set of configuration commands
On board PCB Antenna
FCC Part 15 Certificated
| Pad Type | Description |
|---|---|
| PIO1 | Status instruction port of Bluetooth module can be read by Arduino A1 port: low-disconnected, high-connected. |
| BT_RX | UART Data input of Bluetooth module. |
| BT_TX | UART Data output Bluetooth module. |
| Two Grove connectors | One is Digital (D8 and D9), the other is I2C/Analog (A4 and A5). |
Demonstration 1：Two Bluetooth Shield Connect
This demo will show you how to connect two Bluetooth shield.
You need two piece of Seeeduino V3.0, a Grove - Button, and a Grove - LED.
One Bluetooth Shield as Master while the other as Slave, and there's a Botton connect to the Master, a Led connect to Slave.
When the button press up, the led in Slave will change.
Hardware Installation
Firstly, we choose a Bluetooth Shield as Master, and plug Grove - Button to D8,D9 of this Bluetooth Shield.
For the Slave, we connetc Grove - Led to it's D8,D9 Grove. And D7 as TX, D6 as RX, as folowing:
