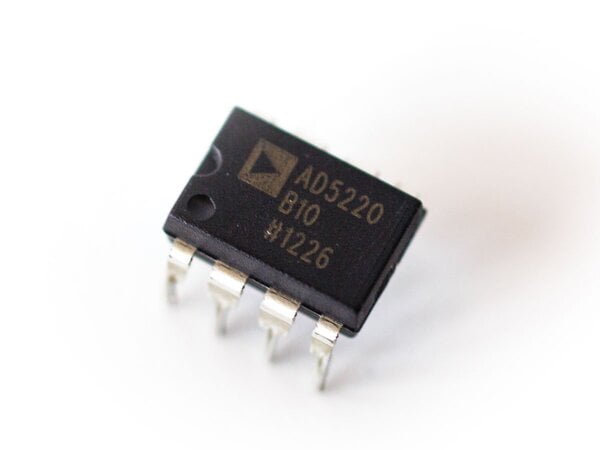

AD5220 B10 (Digital Potentiometer 10K)
BD 5.000
The AD5220 provides a single channel, 128-position digitally controlled variable resistor (VR) device. This device performs the same electronic adjustment function as a potentiometer or variable resistor. These products were optimized for instrument and test equipment push-button applications. A choice between bandwidth or power dissipation is available as a result of the wide selection of end-to-end terminal resistance values.
Features:
- 128 Position
- Potentiometer Replacement
- 10 kΩ, 50 kΩ, 100 kΩ
- Very Low Power: 40 mA Max
- Increment/Decrement Count Control
Application Ideas:
- Mechanical Potentiometer Replacement
- Remote Incremental Adjustment Applications
- Instrumentation: Gain, Offset Adjustment
- Programmable Voltage-to-Current Conversion
- Programmable Filters, Delays, Time Constants
- Line Impedance Matching
- Power Supply Adjustment
Choose Quantity
Product Details
Key Specifications:
- Power requirements: 2.7 to 5.5 VDC
- Communication: interface analog
- Dimensions: 0.43 x 0.28 x 0.195 in (109 X 71 X 82.5 mm)
- Operating temp range: -40 to + 185 °F (–40 to +85 °C)
