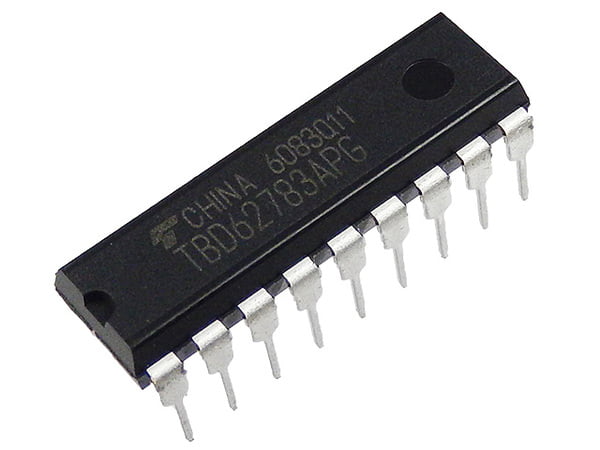

TBD62783APG (8channel source type DMOS transistor array)

The TBD62783APG series is 8-channel source type DMOS transistor array with 8 circuits.

It has clamping diodes to switch the inductive load built into each output. Please pay attention to heat dissipation conditions when using.

Features:

• Built-in 8 circuits

• High voltage: VOUT = 50 V (MAX)

• High current: IOUT = -500 mA

(Maximum value for each channel)

• Input voltage (output on): 2.0 V (MIN)

• Input voltage (output off): 0.6 V (MAX)

• Package: PG type P-DIP18-300-2.54-001

FG type SOP18-P-375-1.27

FNG type SSOP18-P-225-0.65

FWG type P-SOP18-0812-1.27-001
