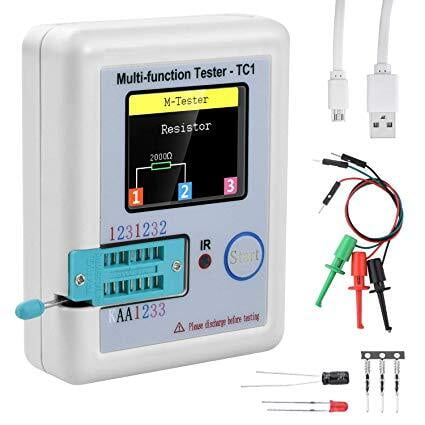

Multi Function Tester
Non-returnable
BD 17.500
- For detecting NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery, resistor and capacitor and other components, etc.
- Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. ( Use 12864 liquid crystal display with green backlight).
- After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
- Measurement results represent by TFT graphic display(160x128). Support Chinese and English.
- One key operation, Auto Power Off(Timeout Settable). Can also press the multi-functional button to close the detector.
Choose Quantity
Product Details
Specifications:
Display: 1.8inch TFT Screen
Diode Range: < 4.5V
Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (INCLUDED)
Power Mode: Rechargeable Lithium Battery (INCLUDED)
Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in
Package Weight: 114g / 4.02oz
Package Included:
1* Multi-functional TFT Transistor Tester
1*Electronic Component Set
1*Cable
3*Test Hook
1* Multi-functional TFT Transistor Tester
1*Electronic Component Set
1*Cable
3*Test Hook
