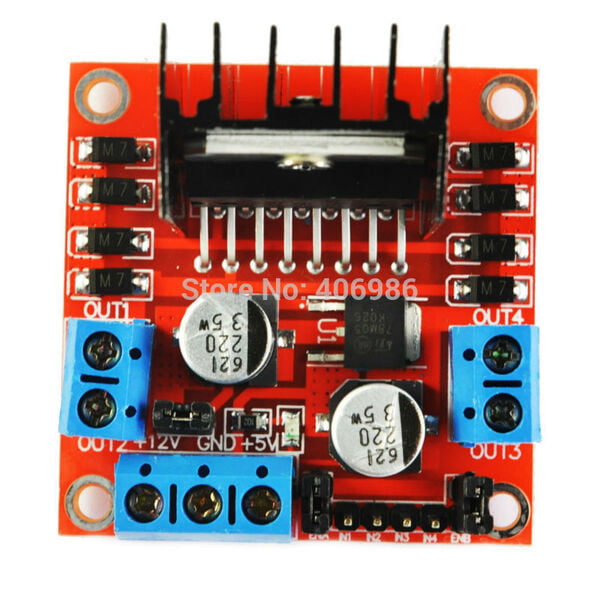

L298N Motor Driver Controller

L298N Motor Driver Controller, Motor Shield

Non-returnable
BD 7.500
This module uses ST's L298N chip as the main driver, driving ability, low heat, strong anti-interference ability.This module can use the built-in 78M05 to take power by driving the power section, but in order to avoid damage to the regulator chip, when use is greater than the drive voltage of 12V, use an external 5V logic supply.The module uses a large-capacity filter capacitors, drain diode can improve reliability.

SPECIFICATIONS:
  1. Double H bridge drive
  2. Chip L298N
  3. Logical voltage 5V
  4. Drive voltage 5V-35V
  5. Logical current 0mA-36mA
  6. Drive current 2A(MAX single bridge)
  7. Storage temperature -20℃ to +135℃
  8. Max power 25W
  9. Size:43x43x27mm
Choose Quantity
+ Add to Cart
Product Details

Features:

  • 5V - 35V DC Drive Voltage
  • 4.5V - 7V DC Logic Supply
  • 4A Continuous current (2A/channel)
  • 6A Peak current (3A/channel)

    • Package List:

  • 1 x L298N Motor Driver Board
