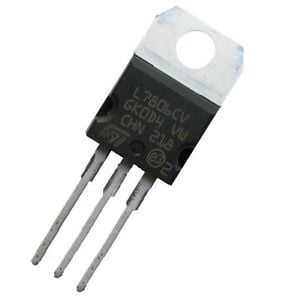

LM7806 (Linear Voltage Regulator, 8V - 21V In, 6V, 1A Out)
Non-returnable
BD 0.500
The LM78XX series of three-terminal positive regulators is available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down, and safe operating area protection. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixedvoltage regulators, these devices can be used with external components for adjustable voltages and currents.
Key Features
- Output Current up to 1 A
- Output Voltages: 6V
- Thermal Overload Protection
- Short-Circuit Protection
- Output Transistor Safe Operating Area Protection
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Accuracy (+/-) | 4 % | |
| Input Voltage Range | 35 V | |
| Junction to Ambient | 65 °C/W | |
| Lead Finish | Matte Tin | |
| Line Regulation | 120 mV | |
| Load Regulation | 120 mV | |
| Maximum Input Voltage | 35 V | |
| Maximum Quiescent Current | 8 mA | |
| Mounting | Through Hole | |
| Number of Outputs | 1 | |
| Output Current | 2.2 A | |
| Pin Count | 3 | |
| Product Dimensions | 10.67 x 4.83 x 9.4 mm | |
| Supplier Package | TO-220AB |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country Of Origin: | China |
| ECCN: | EAR99 |
| HTSN: | 8542390001 |
| SCHEDULE B: | 8542390000 |
