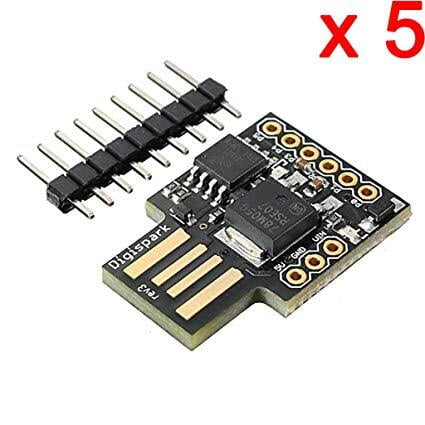

ATTINY85 General Micro USB
BD 7.000
Support for the Arduino IDE 1.0+ (OSX / Win / Linux)
Power via USB or External Source - 5V or 7 -35V (automatic selection)
On-board 500ma 5V Regulator
Built-in USB(and serial debugging)
6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6K after bootloader)
I2C and SPI(vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/ Status LED (on Pin0)
Weight: 4g
Power via USB or External Source - 5V or 7 -35V (automatic selection)
On-board 500ma 5V Regulator
Built-in USB(and serial debugging)
6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6K after bootloader)
I2C and SPI(vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/ Status LED (on Pin0)
Weight: 4g
Choose Quantity
Product Details
Product details of ATTINY85 General Micro USB
- Power via USB or External Source - 5v or 7-35v (automatic selection).
- On-board 500ma 5V Regulator.
- Built-in USB (and serial debugging).
- 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
- 8k Flash Memory (about 6k after bootloader).
- I2C and SPI (vis USI).
- PWM on 3 pins (more possible with Software PWM).
- ADC on 4 pins.
- Power LED and Test/Status LED (on Pin0).
