Digital Multimeter Model# 1
BD 25.000
Out of stock

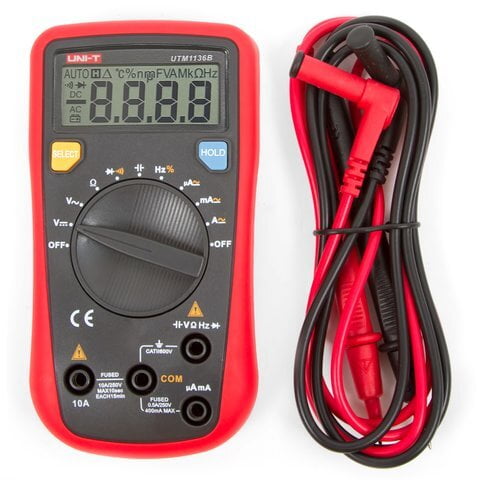

UT136 series digital multimeters a re general type auto ranged meters. The series is small in size, handy for all ope rating environments. Its 4000 count auto range feature allows quick and effective measurements. UT136 series are great tools for electricians and DIYers.
Product Details
| Specifications | Range | UT136B |
| DC voltage (V) | 400mV/4V/40V/400V/500V | ±(0.8%+1) |
| AC voltage (V) | 400mV/4V/40V/400V/500V | ±(1.2%+3) |
| DC current (A) | 400μA/4mA/40mA/400mA/4A/10A | ±(1.0%+2) |
| AC current (A) | 400μA/4mA/40mA/400mA/4A/10A | ±(1.2%+5) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4.0%+3) |
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+3) |
| Duty cycle | 0.1%~99.9% | √ |
| Features | ||
| Diode | √ | |
| Continuity Buzzer | √ | |
| Auto power off | √ | |
| Low battery display | √ | |
| Input impedance for voltage measurement | Around 10MΩ | √ |
| Data Hold | √ | |
| Max. Display | 3999 | |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 49mm × 18mm | |
| Product net weight | About 200g (Battery included) | |
| Product color | Red and grey | |
| Product size (W x H x D) | 72mm × 137mm × 35mm | |
| Standard accessories | Test leads, Battery | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 540mm × 310mm × 350mm | |
| Standard carton gross weight | About 22kg |
