Temperature Controller 12V, 40-120°C
BD 13.500
Out of stock

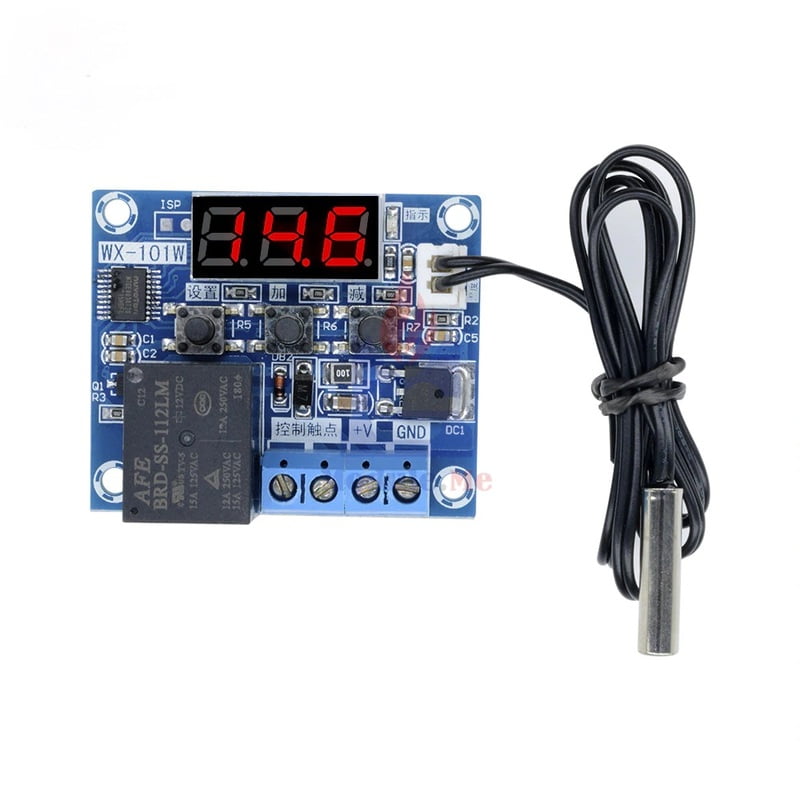

WX-101W Digital Display Thermostat 12V -40-120 Degrees Celsius Control Temperature Control Switch for Incubator Cooling Heating
Temperature control range: -40 -120 Degrees Celsius
Measurement Accuracy: 0.1 Degrees Celsius.(-9.9 to 99.9 Degrees Celsius) others 1 Degrees Celsius
Hysteresis accuracy: Default 0.1 Degrees Celsius.(tunable 0.1-20 Degrees Celsius)
Refresh rate: 0.5 S.
Input Power: DC12V.
Measuring inputs: Waterproof sensor
Description:
Temperature control range: -40 -120 Degrees Celsius
Measurement Accuracy: 0.1 Degrees Celsius.(-9.9 to 99.9 Degrees Celsius) others 1 Degrees Celsius
Hysteresis accuracy: Default 0.1 Degrees Celsius.(tunable 0.1-20 Degrees Celsius)
Refresh rate: 0.5 S.
Input Power: DC12V.
Measuring inputs: Waterproof sensor
Output: 1 Channel relay output, capacity = 12A.
Environmental requirements: -20~ 85 Degrees Celsius .
Easy and convenient to use.
Environmental requirements: -20~ 85 Degrees Celsius .
Easy and convenient to use.
Product Details
Function Setup
Press SET key:
Display Function Range Default
F-1 Heating/cooling / Heating
F-2 Hysteresis Setting 0.1-20 0.1
F-3 Temperature Calibration -5-+5 0
F4 Delay action time 0-10min 0
Package Included:
1pcs x thermostat Temperature Controller with sensor
